Triple Sealed Aluminium Recessed Manhole Cover 40mm Multiple Sizes

The TSL-Pro-Line 40mm range is a triple sealed and locking aluminium recessed manhole cover system designed for shallow floor build-ups where appearance, secure closure and improved sealing are all required. Each cover uses an extruded aluminium frame and tray with a galvanised steel bottom plate and reinforcement mesh, allowing tile, paving and other thin finishes to be installed within the recess.

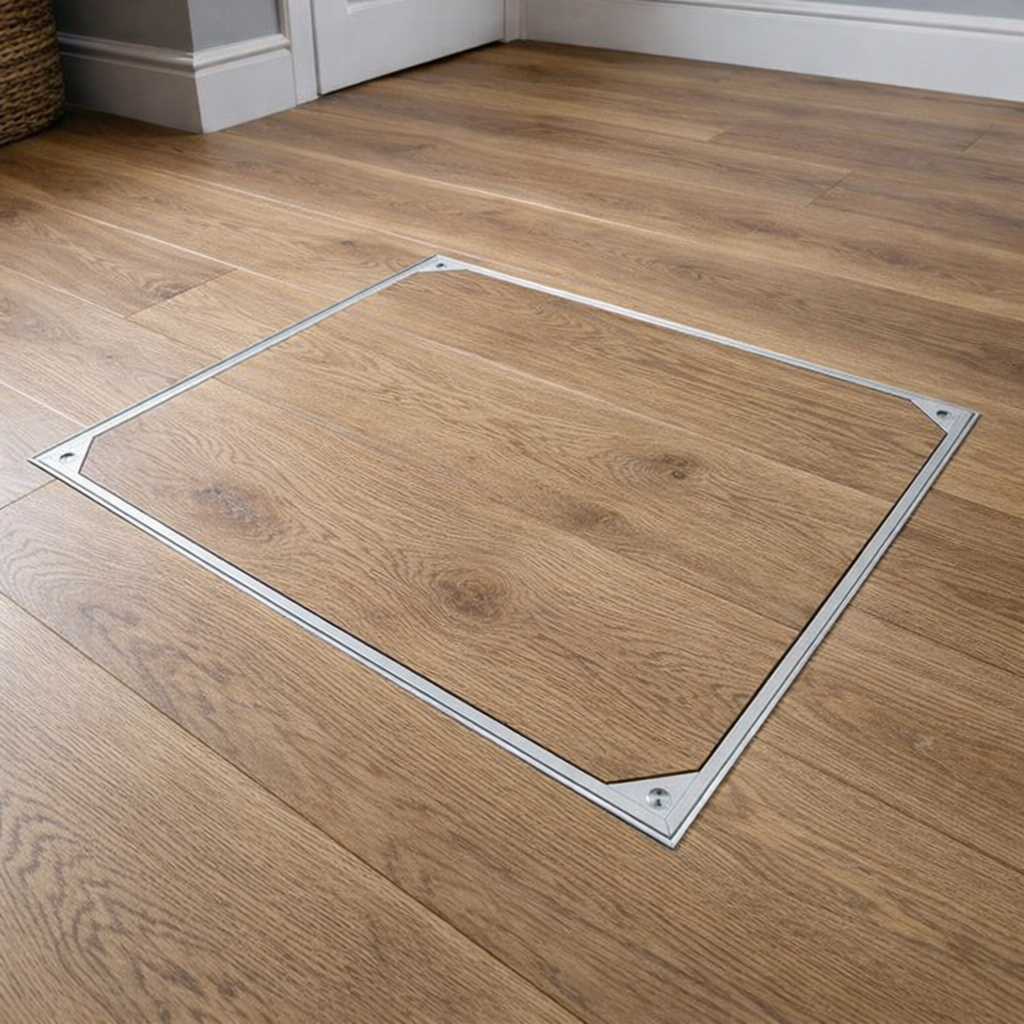

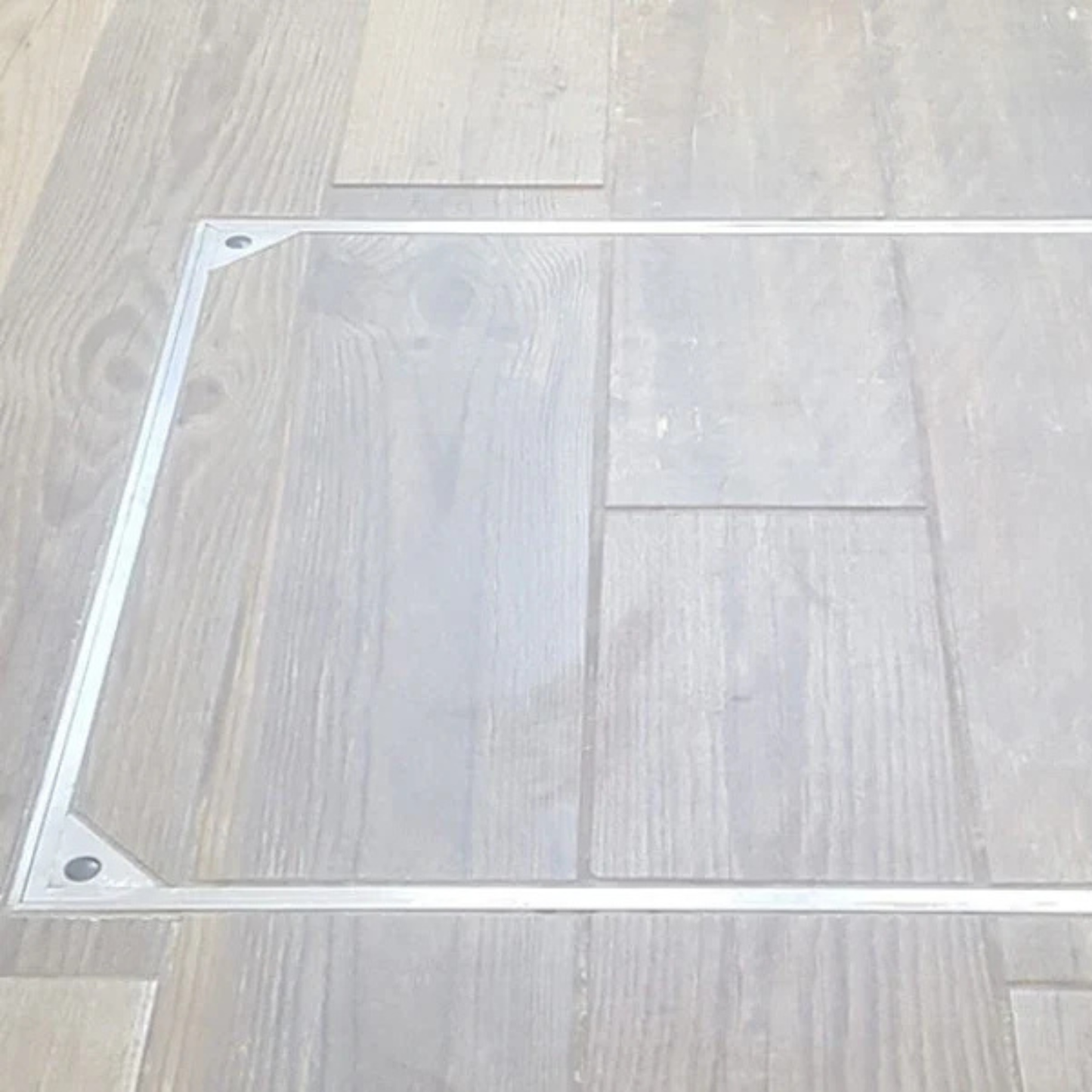

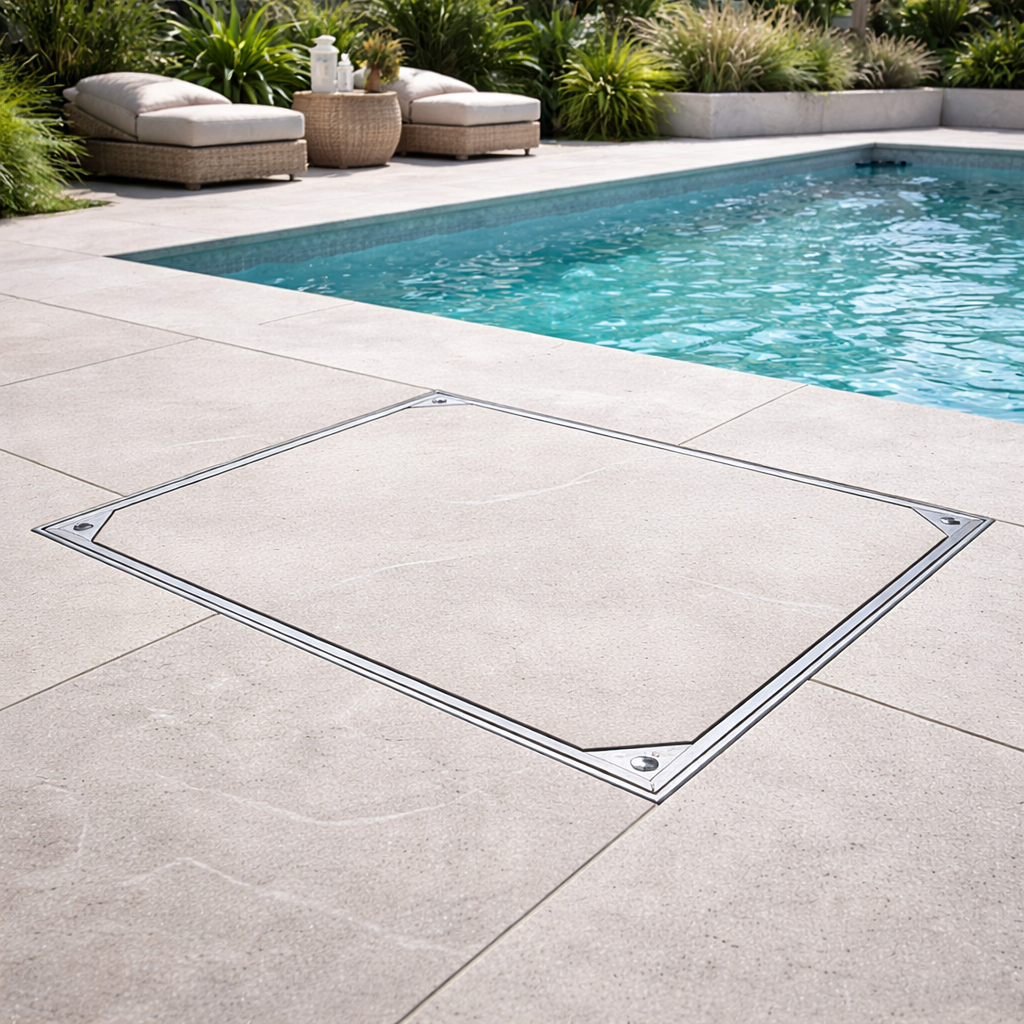

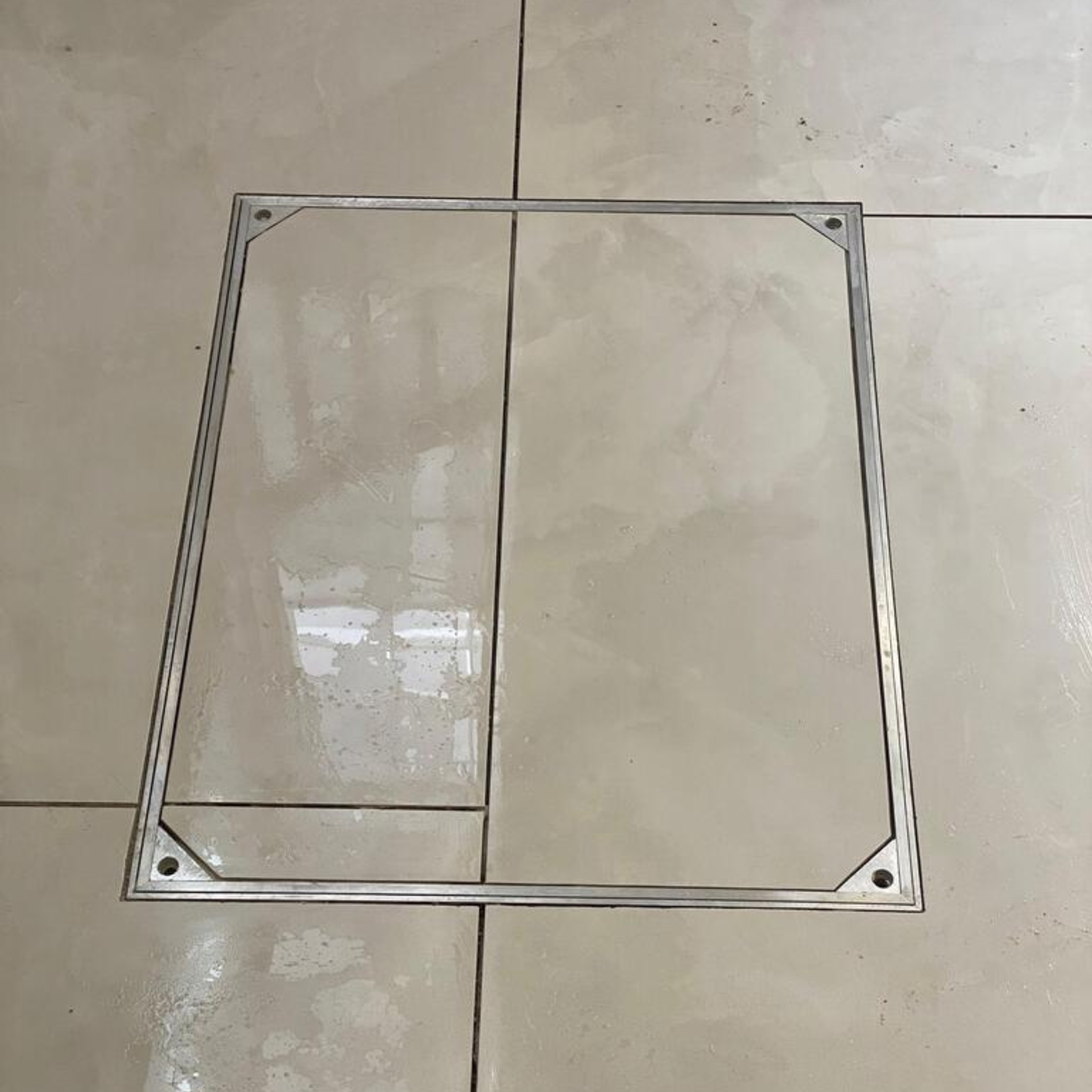

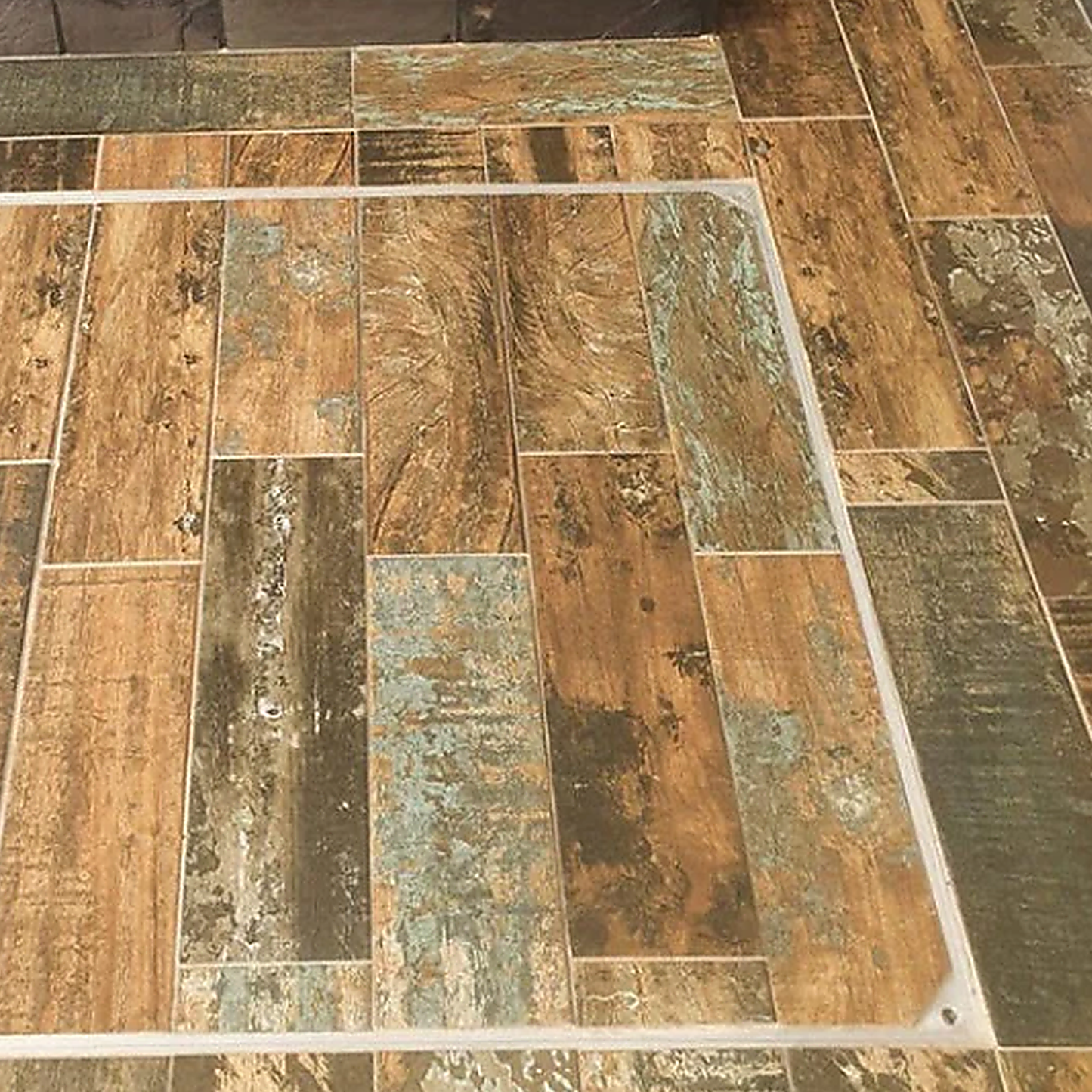

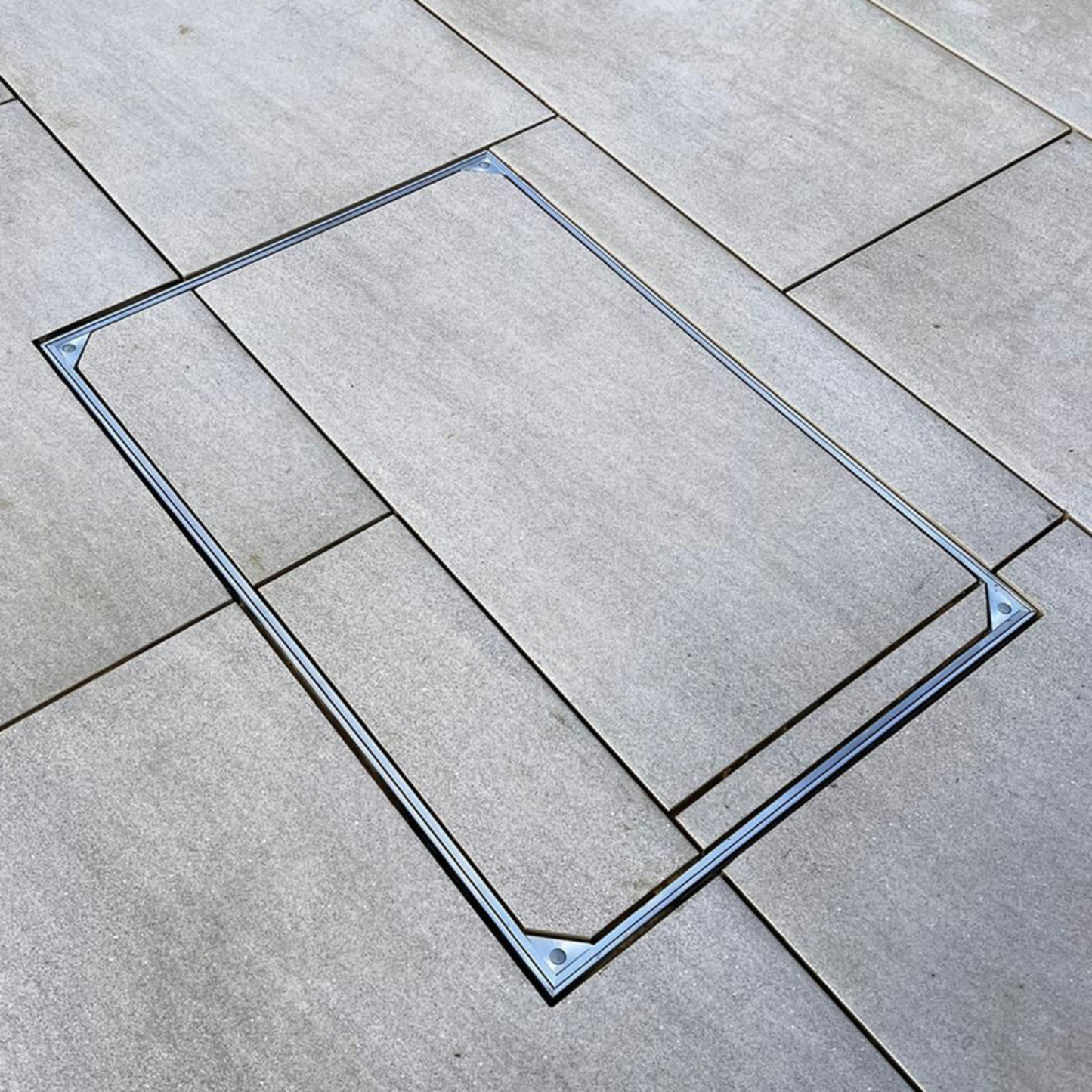

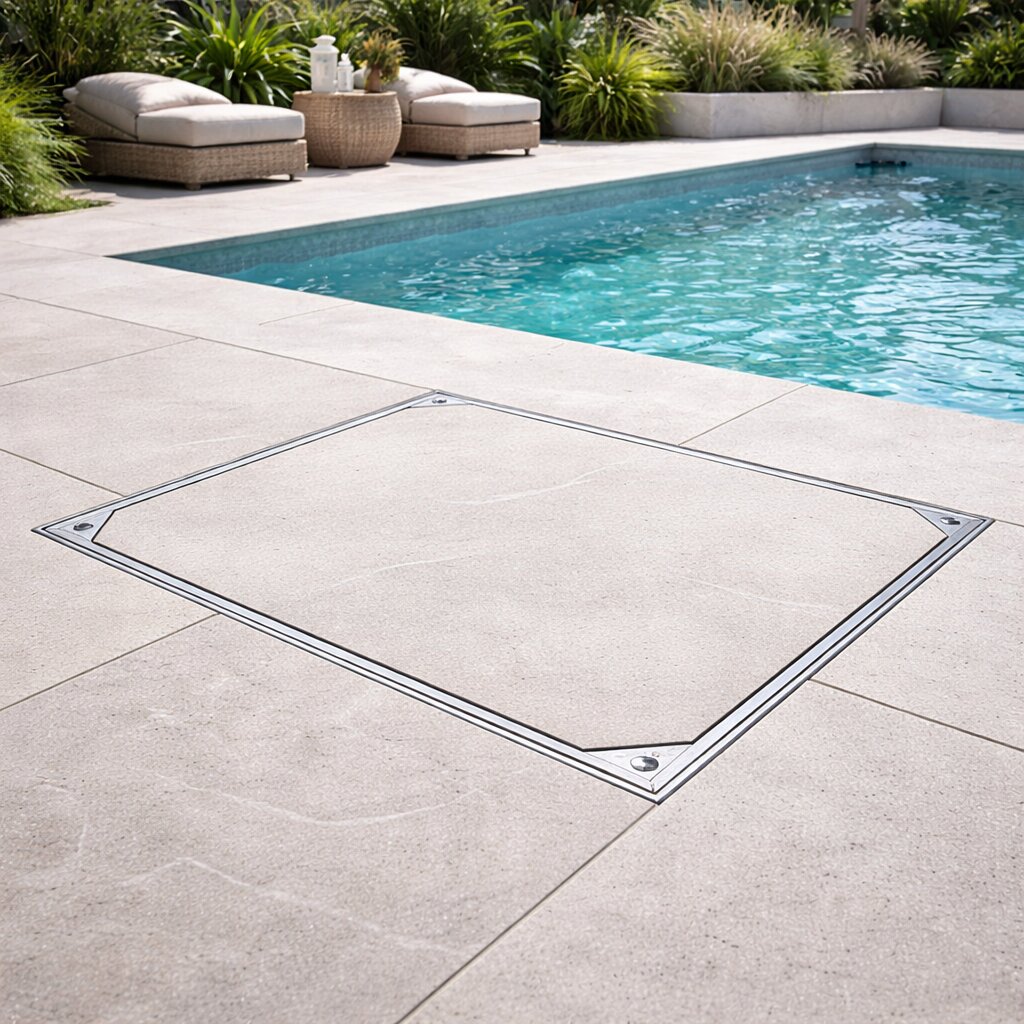

This range is typically used in internal tiled floors, porcelain patios and other finished surfaces where a flush and more discreet access point is needed. Unlike double sealed covers, this range is screw locked and uses three sealing points, with two seals at the base and a side T-rubber seal. This helps improve resistance to odours, water and dirt build-up around the cover edge.

The main reason to specify this range is where a shallower recess is needed but a plain seated or non-locking cover would not provide enough sealing or security. The 21mm tray depth suits thinner finishes and avoids the common mistake of selecting a deeper tray where the surface build-up cannot support it.

All listed sizes in this group are A15 rated based on a quality concrete infill.

• Available in multiple clear opening sizes from 300 x 300mm to 750 x 750mm
• Triple sealed design uses two base seals and one side T-rubber seal
• Screw locked tray provides a more secure closure than non-locking recessed covers
• 21mm tray depth suits shallow tile and paving build-ups
• Extruded aluminium frame gives a cleaner and more discreet finished appearance

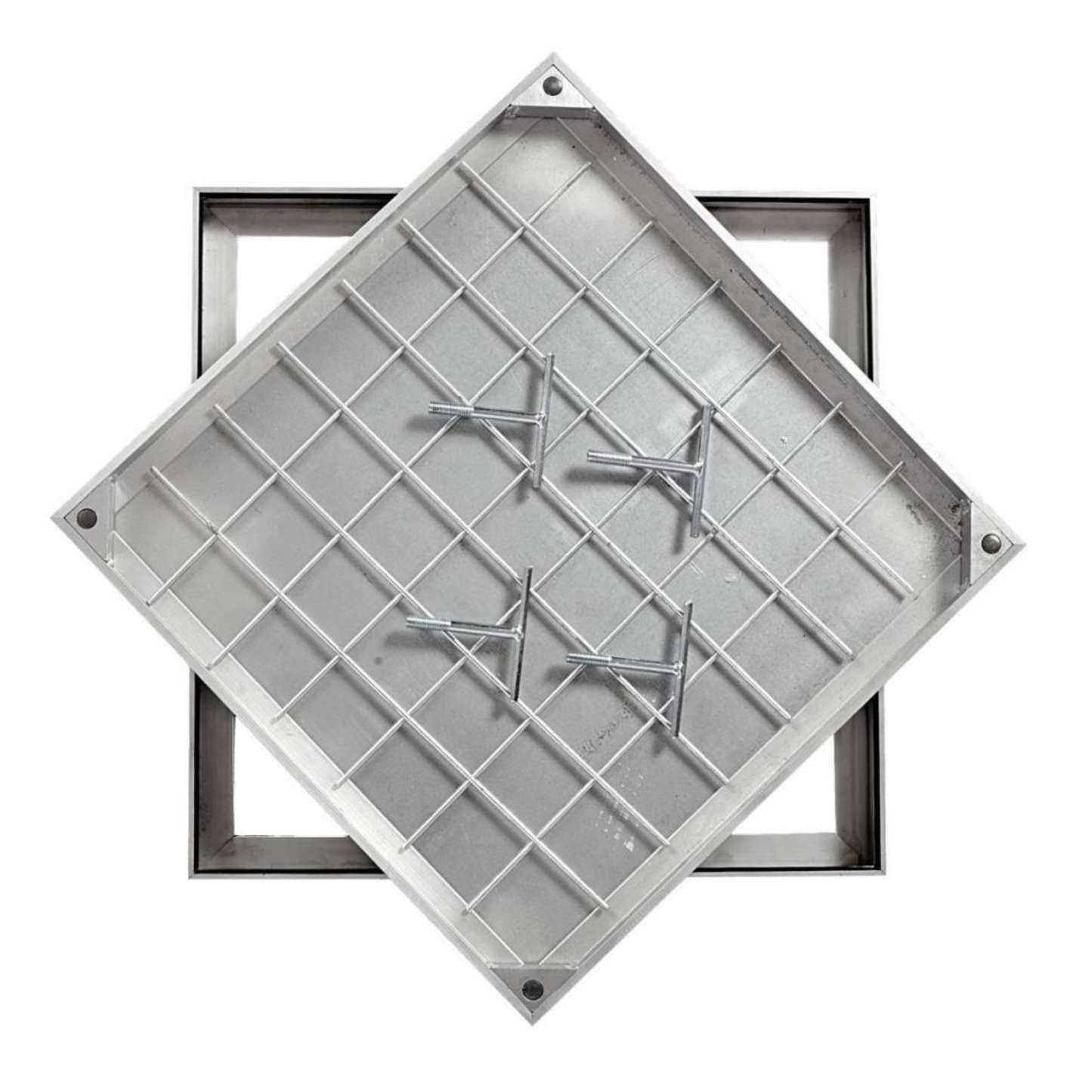

• Reinforcement mesh helps support the infill within the recessed tray
• Galvanised steel bottom plate improves rigidity beneath the infill

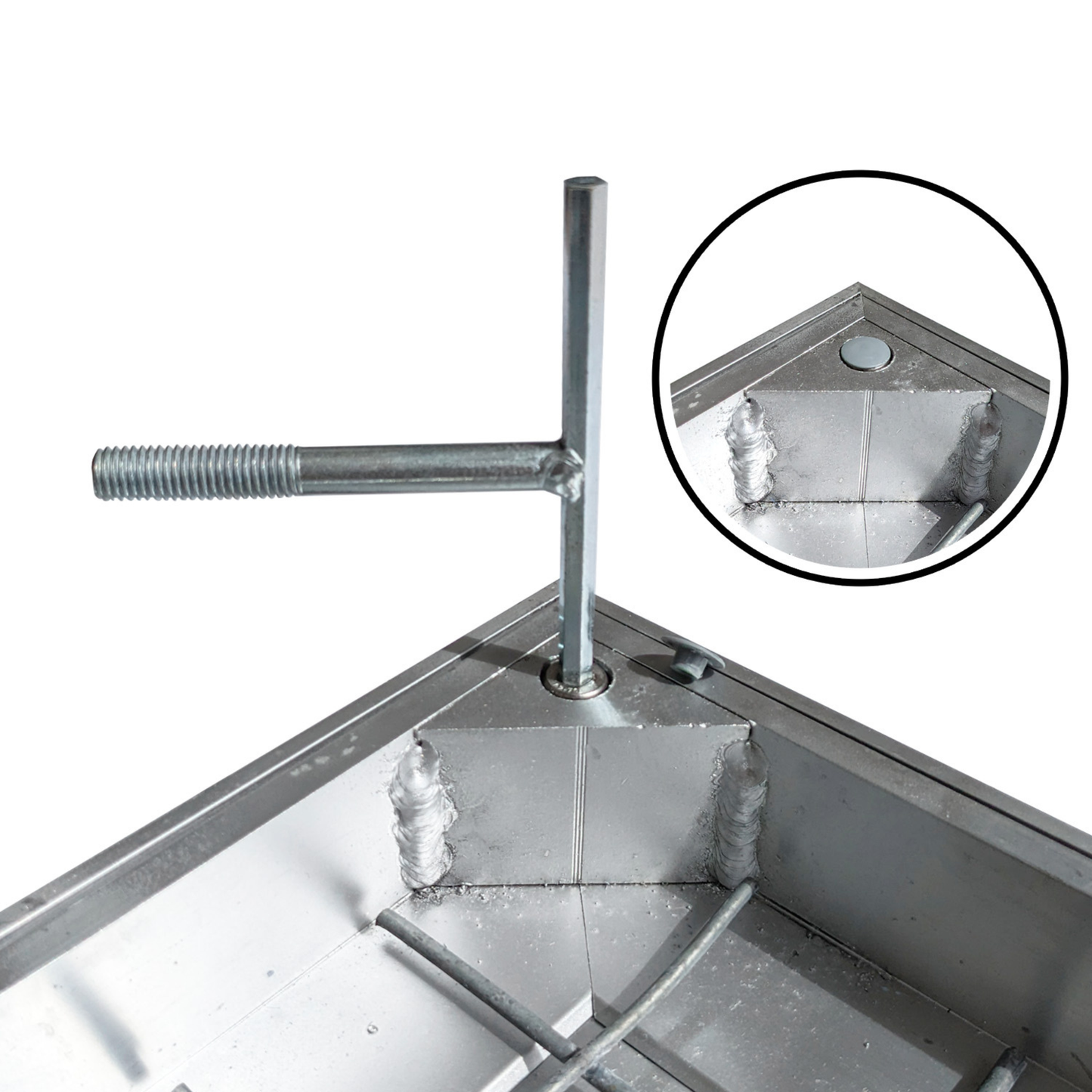

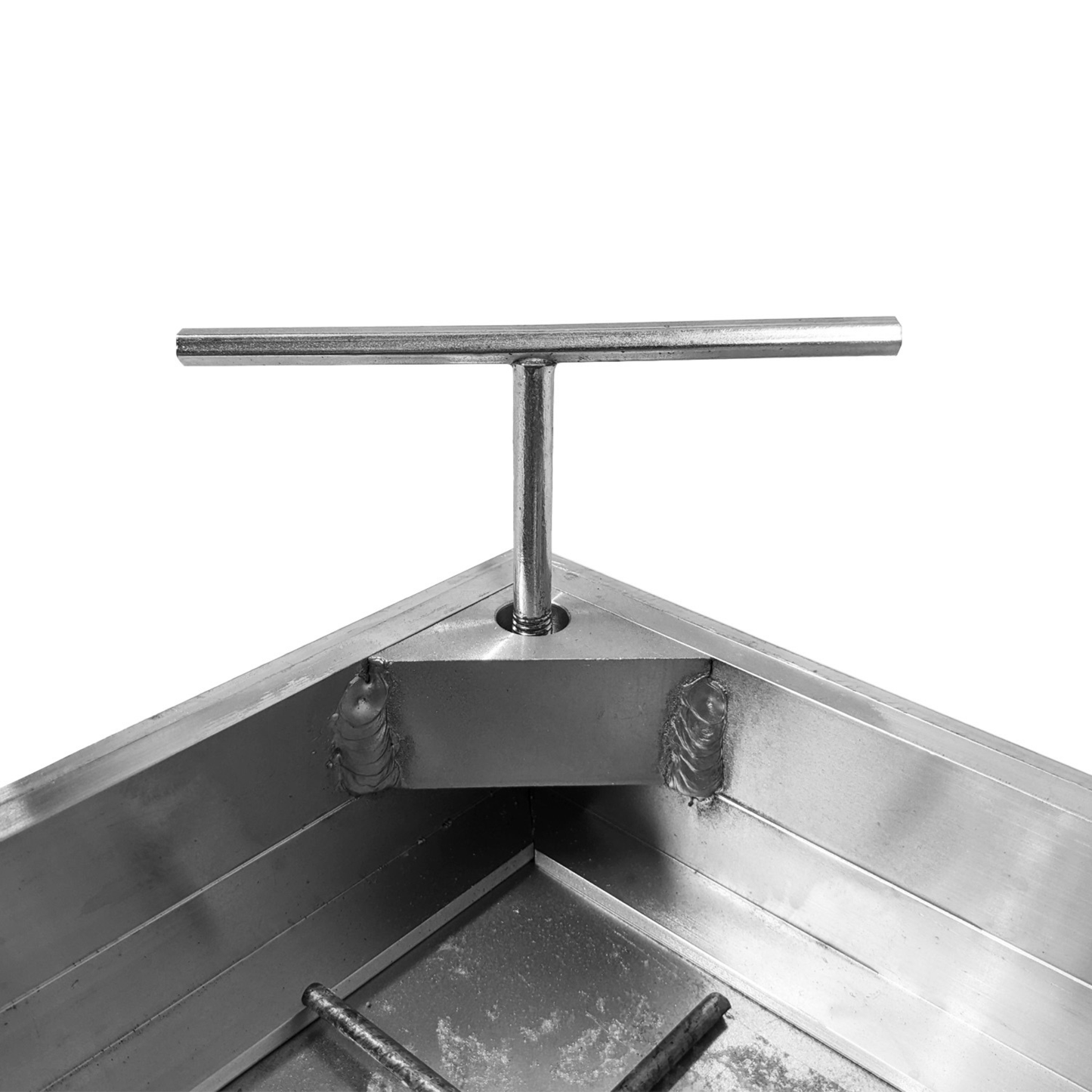

• Supplied lifting keys allow access for inspection and maintenance
• All listed sizes in this set are A15 rated when filled with quality concrete

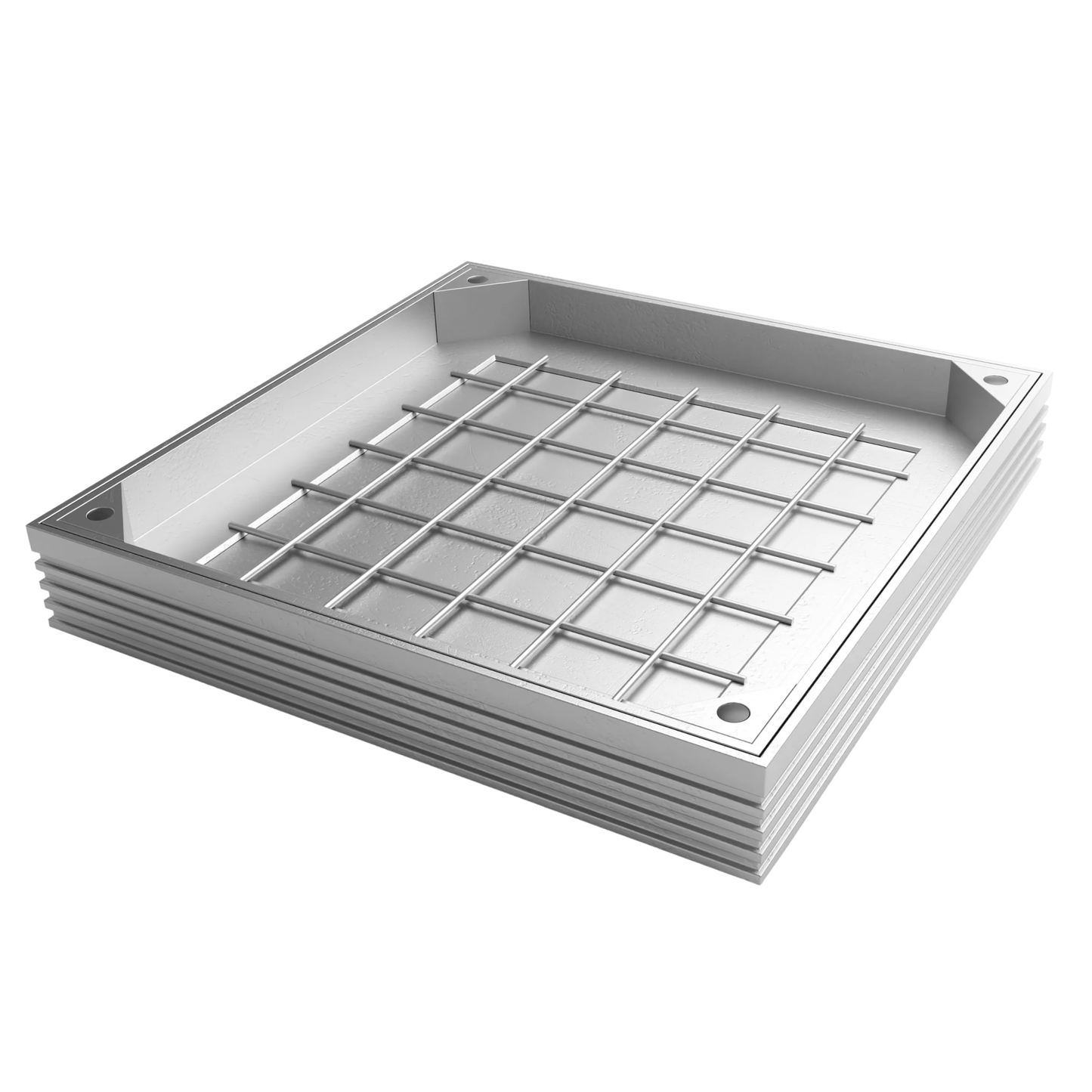

The frame and cover are manufactured from extruded aluminium for a cleaner architectural finish and good corrosion resistance in normal internal and external environments. The tray includes a galvanised steel bottom plate and reinforcement mesh to support the infill material. Sealing is provided by two base seals combined with a side T-rubber seal.

Product type: Triple sealed and locking aluminium recessed manhole cover
Suitable location: Internal and external finished floor areas, subject to load class
Clear opening: Multiple sizes
Overall frame size: Varies by size
Tray depth (recess depth): 21mm
Frame depth: 40mm
Material: Extruded aluminium frame and cover with galvanised steel bottom plate
Finish: Aluminium
Seal type: Triple seal, two base seals and side T-rubber seal
Locking: Screw locked
Load rating: A15, based on quality concrete infill
Lifting method: Lifting points with lifting keys supplied
Fixings supplied: No
Weight: Varies by size
Standards: Load class updated by manufacturer sheet, based on quality concrete infill
Options:
TSL-40-3030, 300mm x 300mm clear opening, 390mm x 390mm overall frame size, A15
TSL-40-4545, 450mm x 450mm clear opening, 540mm x 540mm overall frame size, A15
TSL-40-6045, 600mm x 450mm clear opening, 690mm x 540mm overall frame size, A15
TSL-40-6060, 600mm x 600mm clear opening, 690mm x 690mm overall frame size, A15
TSL-40-7560, 750mm x 600mm clear opening, 840mm x 690mm overall frame size, A15
TSL-40-7575, 750mm x 750mm clear opening, 840mm x 840mm overall frame size, A15
