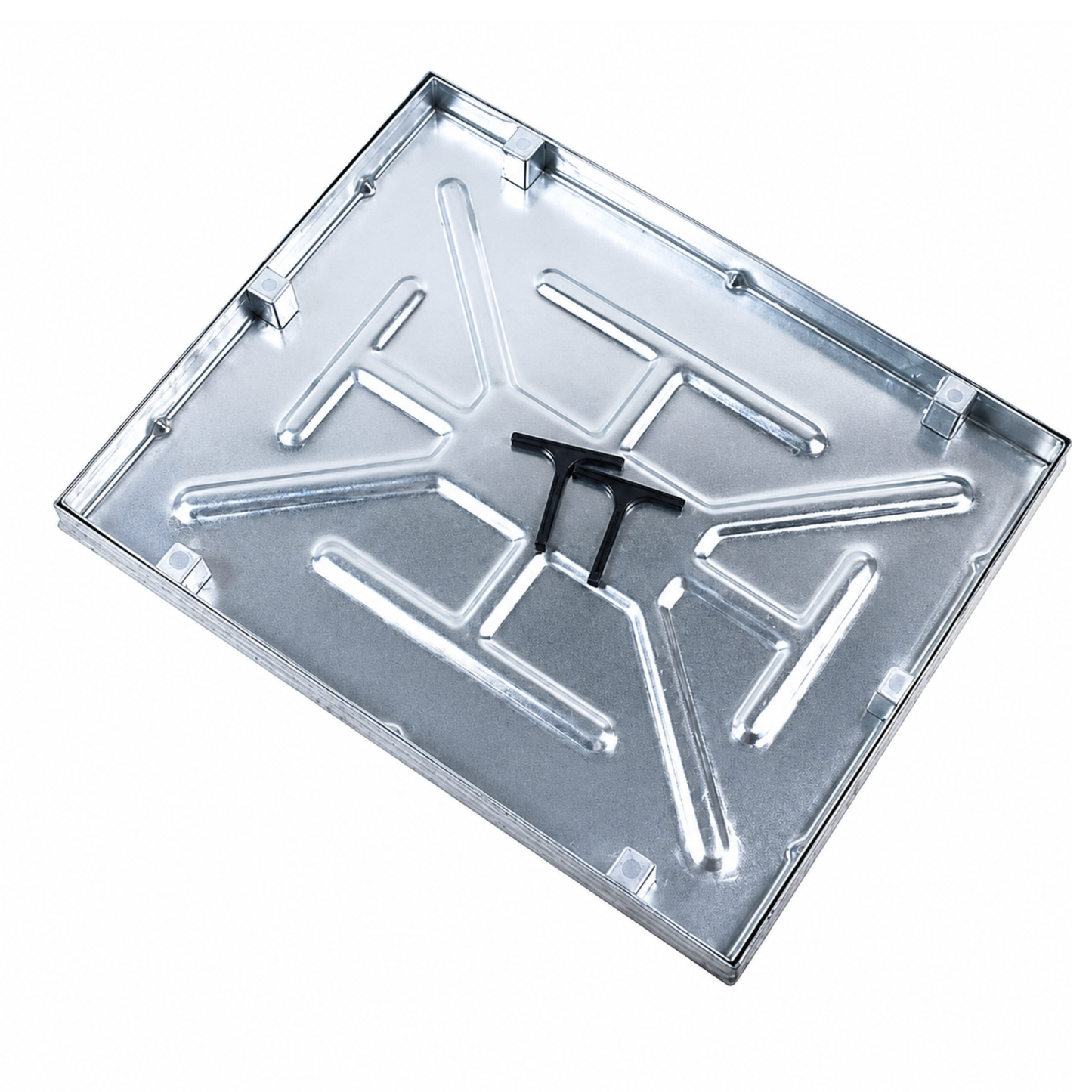

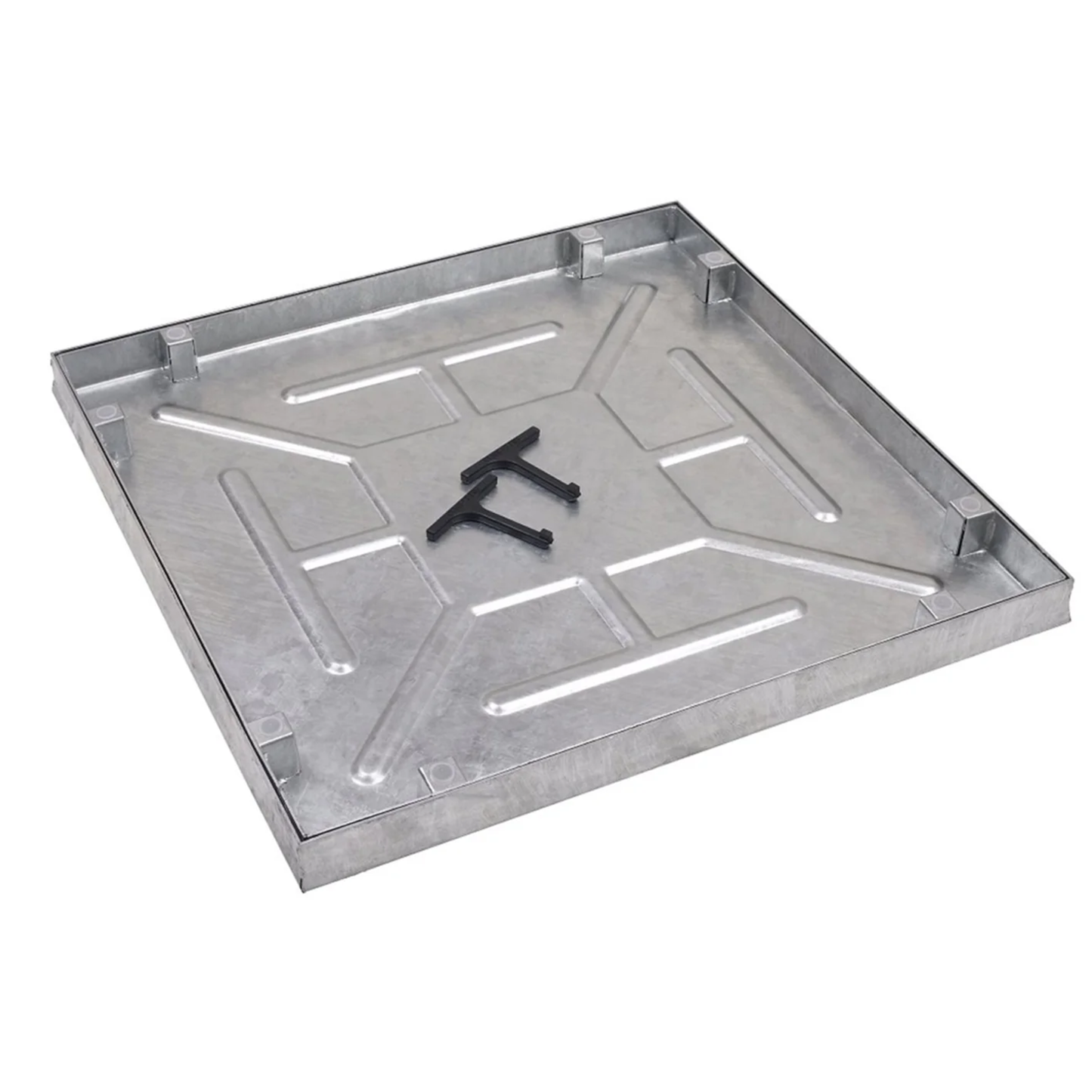

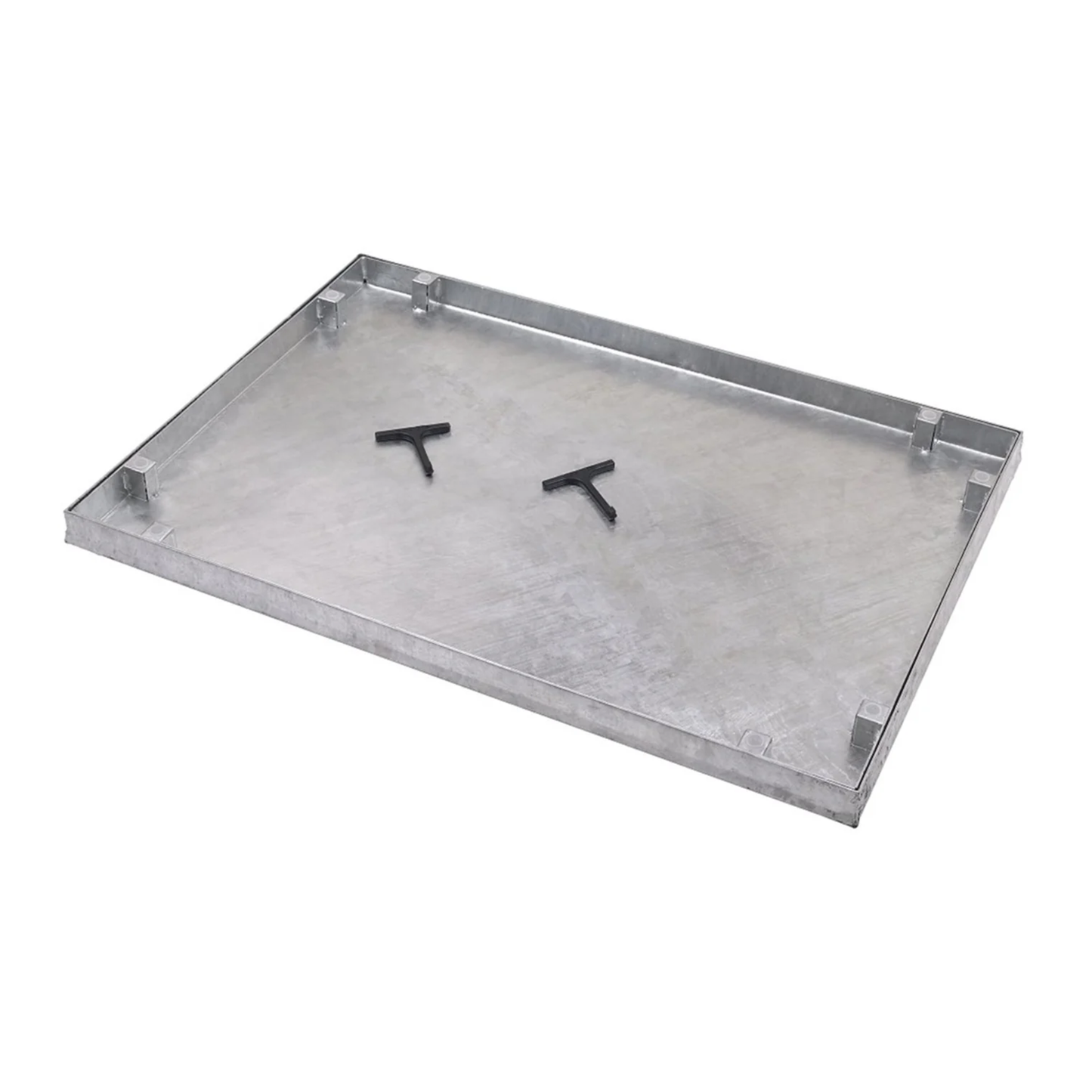

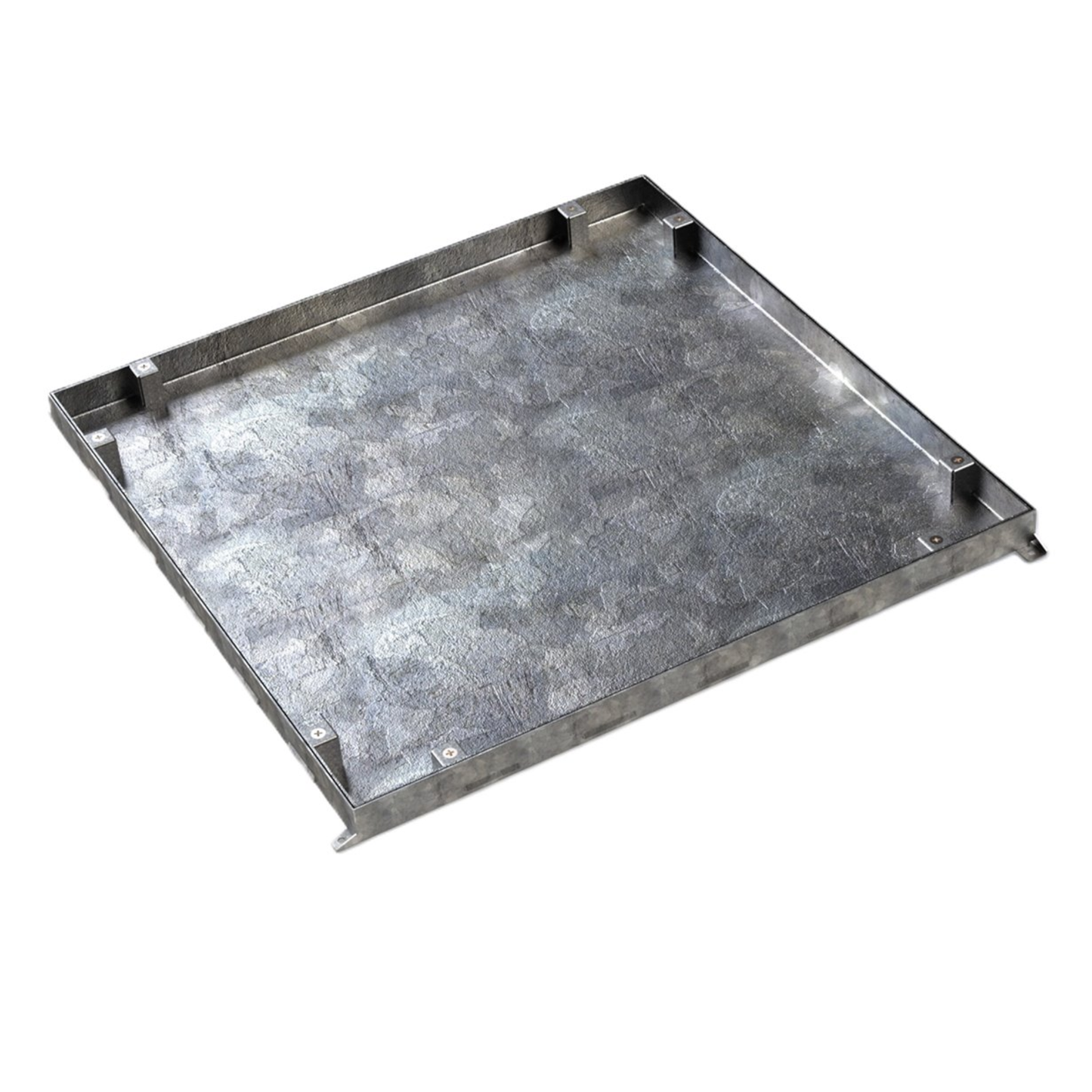

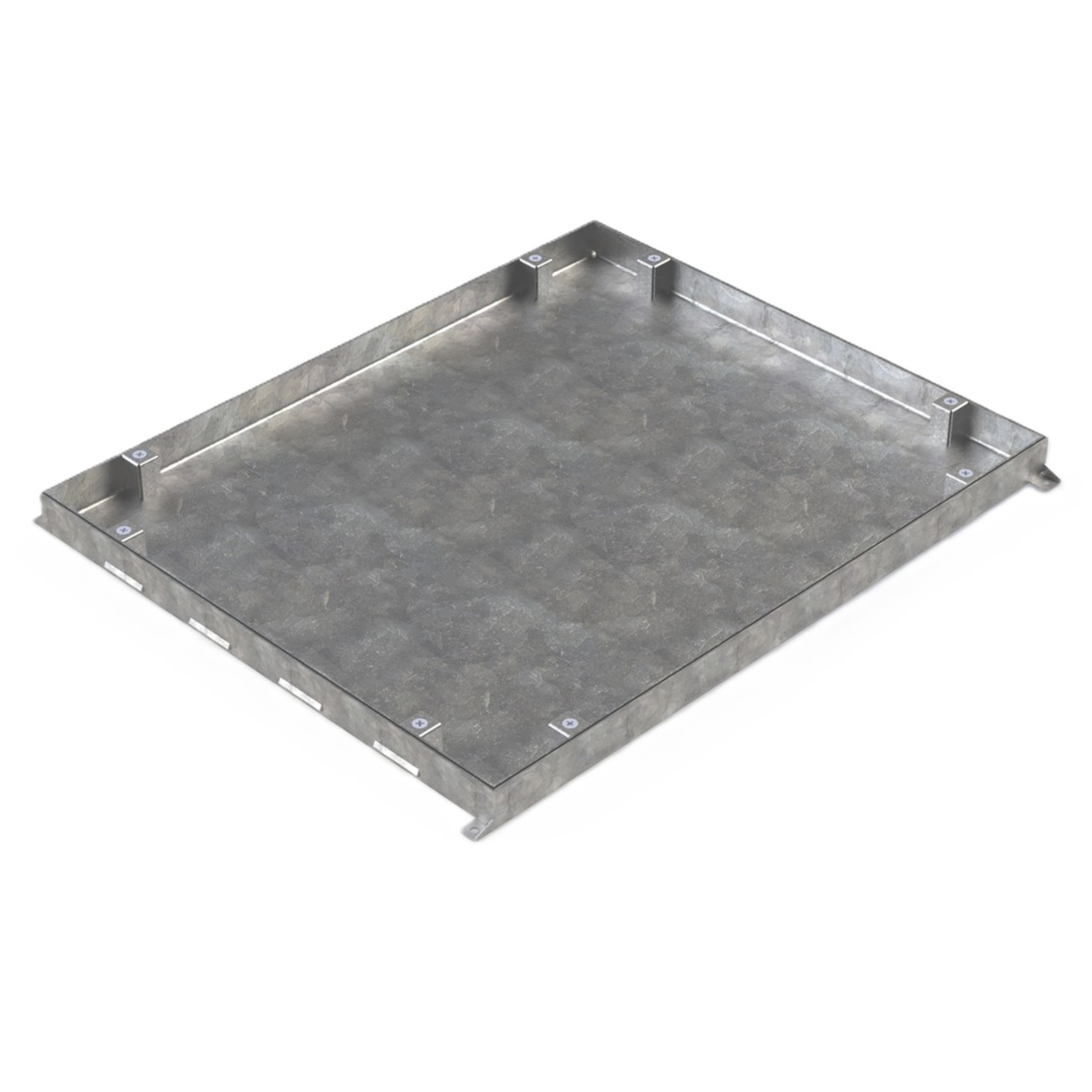

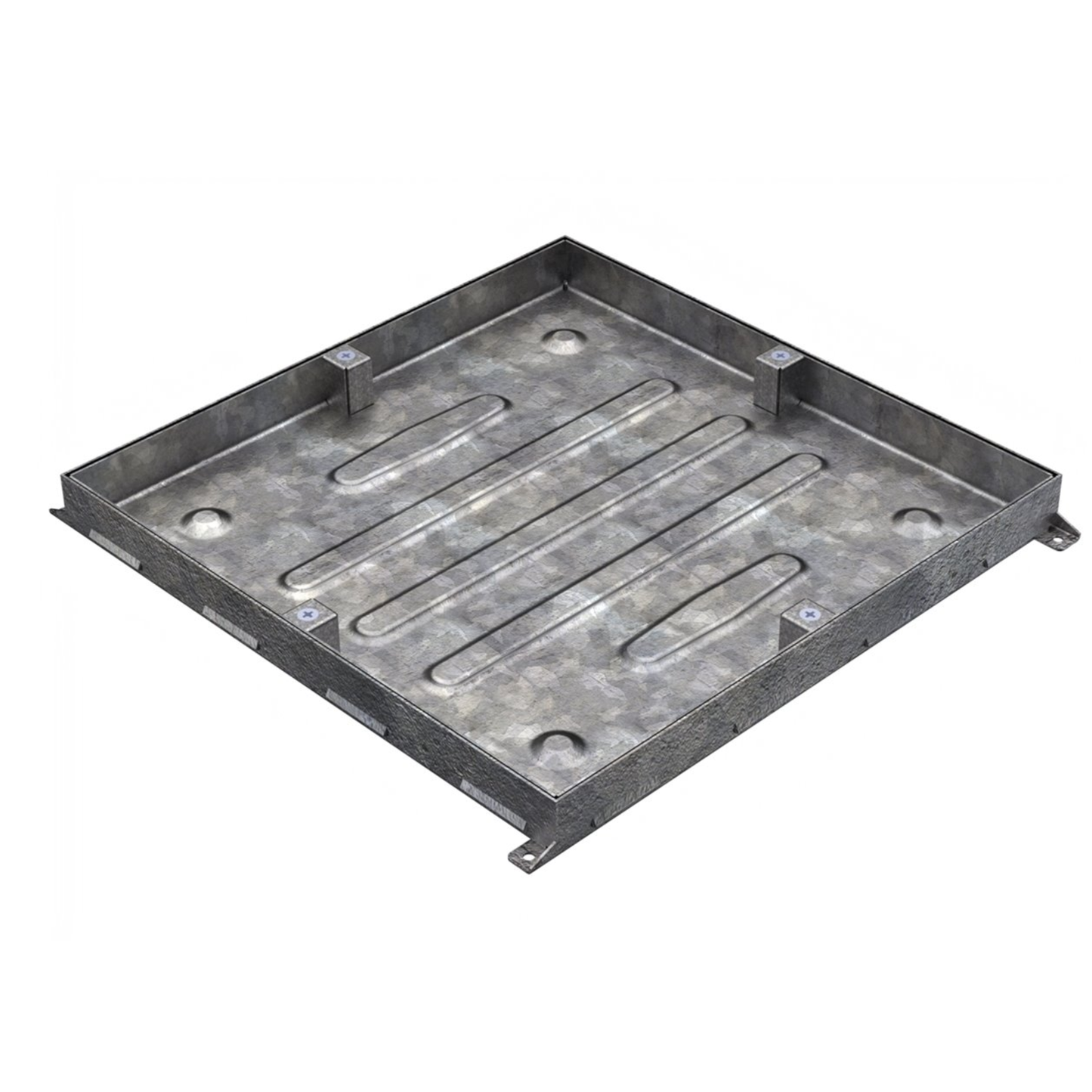

Water & Odour Tight Sealed Recessed Manhole Cover 5 Tonne Multiple Sizes

This water and odour tight recessed manhole cover range is designed for installations where a higher level of sealing performance is required compared to standard sealed covers. Manufactured from galvanised steel, each unit provides a rigid structure suitable for internal drainage applications.

The key difference in this range is the factory fitted polyethylene sealing system, which provides water tightness up to 1 metre head of pressure alongside odour control. This makes the covers suitable for basements, commercial kitchens, plant rooms and areas with a high water table.

All covers in the range are rated to 5 tonne load capacity, making them suitable for pedestrian areas and internal floors. They are not suitable for trafficked areas or driveways.

The recessed tray allows for concrete or screed infill, maintaining a flush finish with the surrounding surface. Each cover is supplied with lifting keys and features multi point locking screws to ensure consistent compression of the seal.

Incorrect specification often occurs where standard sealed covers are used in areas exposed to standing water. This range avoids that issue by providing a defined water resistance rating.

• Available in multiple clear opening sizes from 450mm to 900mm
• Polyethylene seal provides water tightness up to 1 metre head
• Odour tight design suitable for internal drainage systems
• Multi-point locking screws improve seal compression and performance
• Supplied with lifting keys for safe and immediate access
• Recessed 43.5mm tray suitable for concrete or screed infill
• Galvanised steel construction provides strength and durability
• Designed for high water table and below ground environments

Manufactured from galvanised mild steel to EN 10346, providing structural strength and corrosion resistance. The polyethylene sealing system is designed to maintain a consistent seal under compression, supporting both water and odour tight performance.

Product type: Water and odour tight sealed recessed manhole cover
Suitable location: Internal and external pedestrian areas
Clear opening: Multiple sizes (450 x 450 to 900 x 600)
Overall frame size: Varies by size
Tray depth (recess depth): 43.5mm
Frame depth: Approx. 49–50mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Polyethylene sealing gasket
Locking: Multi-point locking screws
Load rating: 5 tonne GPW
Lifting method: Lifting keys included
Fixings supplied: Not specified
Weight: 10kg to 30kg depending on size
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3
Options: Size variants
