600 x 450mm Grass & Gravel Recessed Manhole Cover 10 Tonne

This recessed manhole cover is designed to provide concealed access within grass, landscaped and gravel surfaces. The rectangular format suits standard inspection chambers, while the recessed tray allows the chosen infill to sit flush with the surrounding ground.

Two infill options are available. The grass top version is intended for soil and turf, using drainage holes and membrane layers to support water movement and grass growth. The gravel top version incorporates an EcoGrid reinforcement layer, which stabilises loose aggregate and prevents movement under foot or vehicle loading.

The 80mm tray depth is suited to typical external build-ups. It allows for turf or gravel finishes without excessive build height, helping avoid issues where shallow trays lead to poor establishment or loose infill.

The unit is constructed with a galvanised steel tray and a polypropylene frame. This combination provides structural strength with corrosion resistance in ground conditions. It is suitable for domestic driveways and similar applications, with a load rating of 10 tonne when correctly installed.

Selection should always be based on the clear opening of the chamber. The overall frame size is larger and should not be used for sizing.

• 600mm x 450mm clear opening suits standard rectangular chambers
• 80mm tray depth supports turf or gravel installations
• Choice of grass top or gravel top with EcoGrid reinforcement
• EcoGrid option stabilises loose aggregate under traffic
• Galvanised steel tray provides load bearing strength
• Polypropylene frame resists corrosion in ground conditions
• Integral lifting handles allow safe access for maintenance
• Suitable for gardens, landscaping and domestic driveways

Constructed from a galvanised mild steel tray for structural performance combined with a polypropylene frame for corrosion resistance. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an EcoGrid reinforcement layer to stabilise loose infill materials.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 600mm x 450mm
Overall frame size: 695mm x 545mm
Tray depth (recess depth): 80mm
Frame depth: 96mm
Material: Galvanised steel tray with polypropylene frame
Finish: Black frame with galvanised tray
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting handles
Fixings supplied: No
Weight: 14.5kg
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3 (manufacturer stated)
Options:

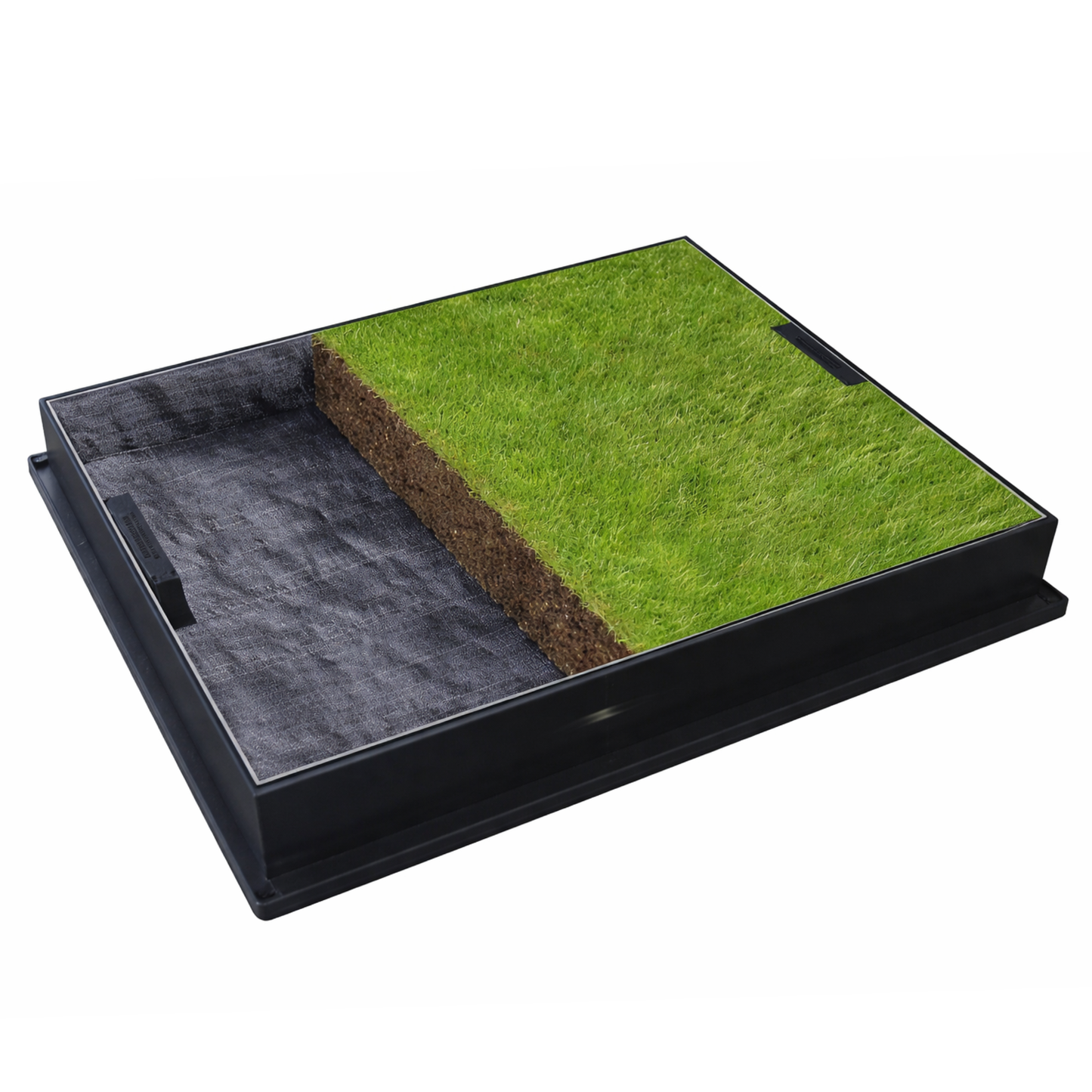

CD 790R/80-GT, Grass Top, 600mm x 450mm clear opening, 695mm x 545mm overall frame size

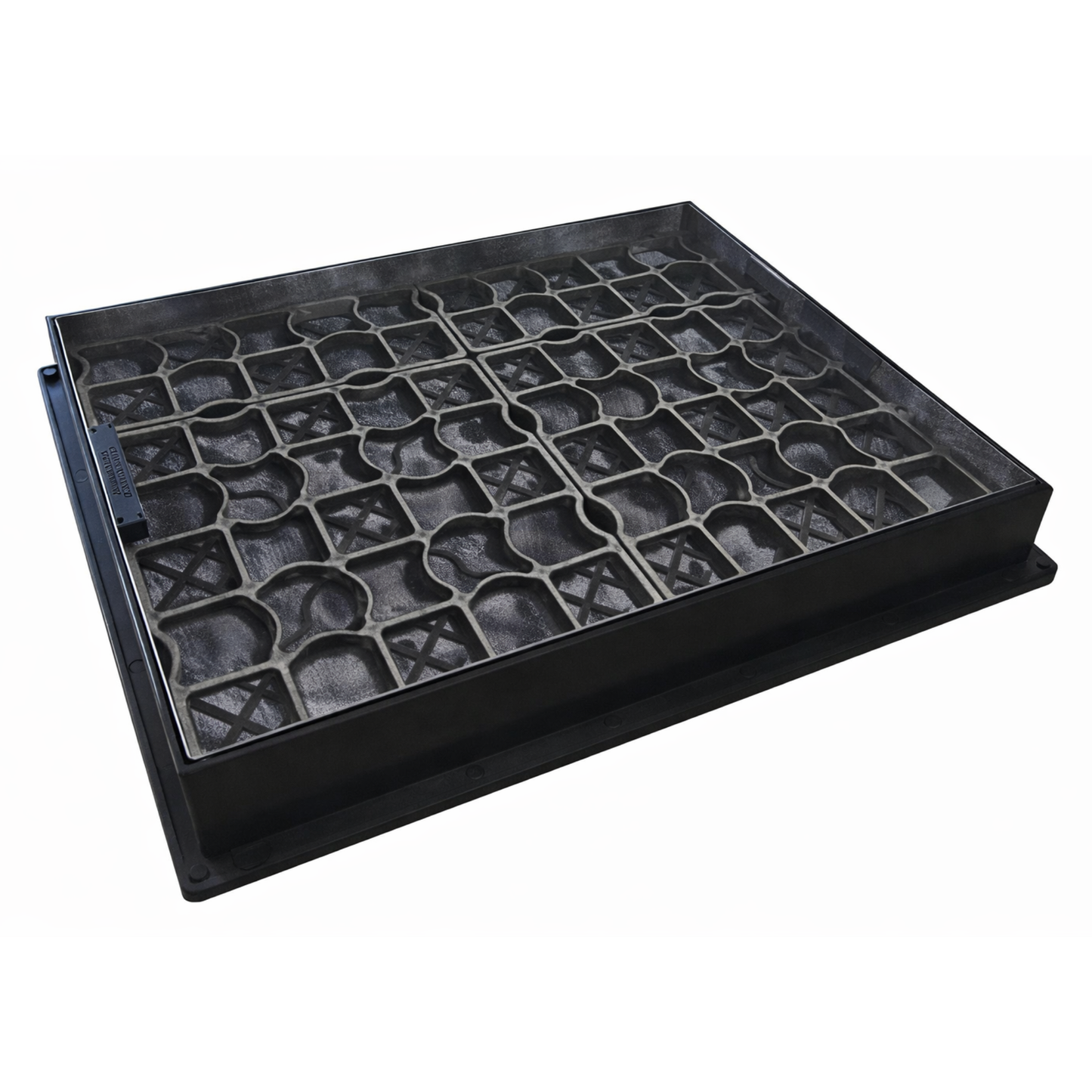

CD 790R/80-GT-EG, Gravel Top, 600mm x 450mm clear opening, 695mm x 545mm overall frame size
