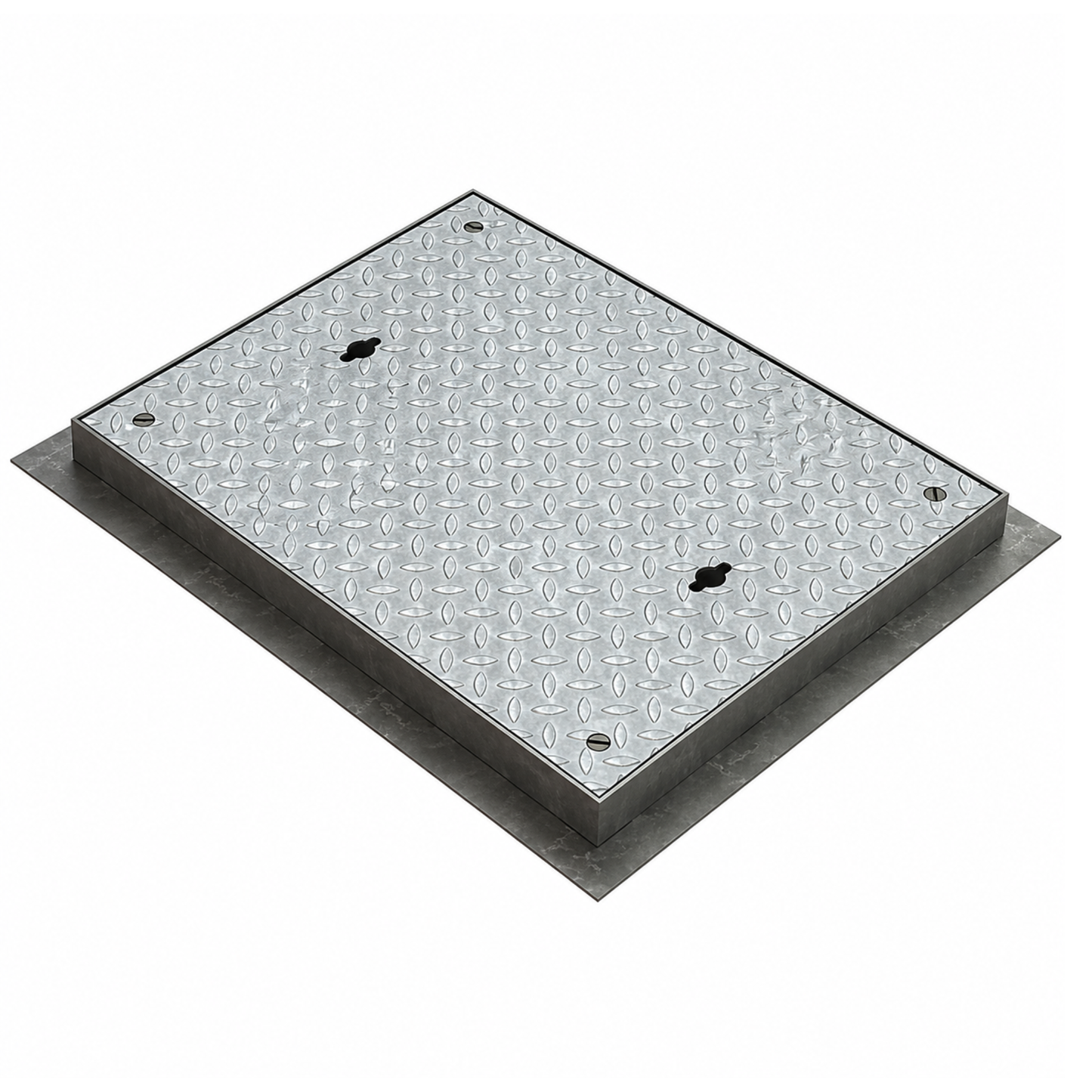

600 x 450mm Sealed & Locking Solid Top Manhole Cover

This 600 x 450mm sealed and locking solid top manhole cover range is designed for installations where a standard plain seated cover does not provide enough control. Each option combines a galvanised steel lid and frame with an integrated seal and four screw locking system to help restrict odours, debris and unwanted lid movement.

Unlike a recessed cover, the lid remains visible after installation and does not accept infill materials. The raised tread steel lid provides grip underfoot and a durable finish for regularly used access points. The 600mm x 450mm clear opening suits many inspection chambers, drainage runs, utility ducts and service access locations.

All options share the same 40mm overall frame depth, making selection simpler where installation depth is fixed or when replacing an existing shallow cover. The correct variant can then be selected by loading requirement.

The Pedestrian option is suited to foot traffic areas, internal floors and landscaped spaces. The 5 Tonne option is commonly used on domestic driveways and light vehicles. The 10 Tonne option is intended for more demanding private traffic areas and lightly trafficked service locations.

A common ordering mistake is choosing by size only. The chamber opening and the real traffic loading must both be checked before ordering.

Integrated seal helps restrict odours, debris and surface contamination

Four screw locking lid helps secure the cover to the frame

Pedestrian, 5 Tonne and 10 Tonne load options available

Galvanised steel construction provides durable load-bearing performance

Raised tread lid improves grip underfoot in wet conditions

600mm x 450mm clear opening suits many chamber and service access points

40mm overall depth suits many replacement and new installations

Two lifting keyholes allow removal using suitable lifting keys

Visible solid top lid gives quick access point identification

Suitable where security and odour control are needed beyond plain seated covers

Manufactured from mild steel and hot dip galvanised for corrosion protection in normal external environments. Steel provides structural strength, while the galvanised finish helps protect exposed metal surfaces in service

Product type: Sealed and locking solid top manhole cover
Suitable location: Internal or external
Clear opening: 600mm x 450mm
Overall frame size: 730mm x 580mm
Overall depth: 40mm
Material: Mild steel
Finish: Hot dip galvanised
Seal type: Integrated odour-reducing seal
Locking: Four screw locking lid
Load rating: Pedestrian / 5 Tonne / 10 Tonne
Lifting method: Keyhole lifting points, keys sold separately
Fixings supplied: Integrated screw fixings
Weight: Approx. 18kg
Standards: FACTA stated on original product data
Options:
EG-ST-6045PS, Pedestrian, 600mm x 450mm clear opening, 730mm x 580mm overall frame size
EG-ST-6045LS, 5 Tonne, 600mm x 450mm clear opening, 730mm x 580mm overall frame size
EG-ST-6045MS, 10 Tonne, 600mm x 450mm clear opening, 730mm x 580mm overall frame size
