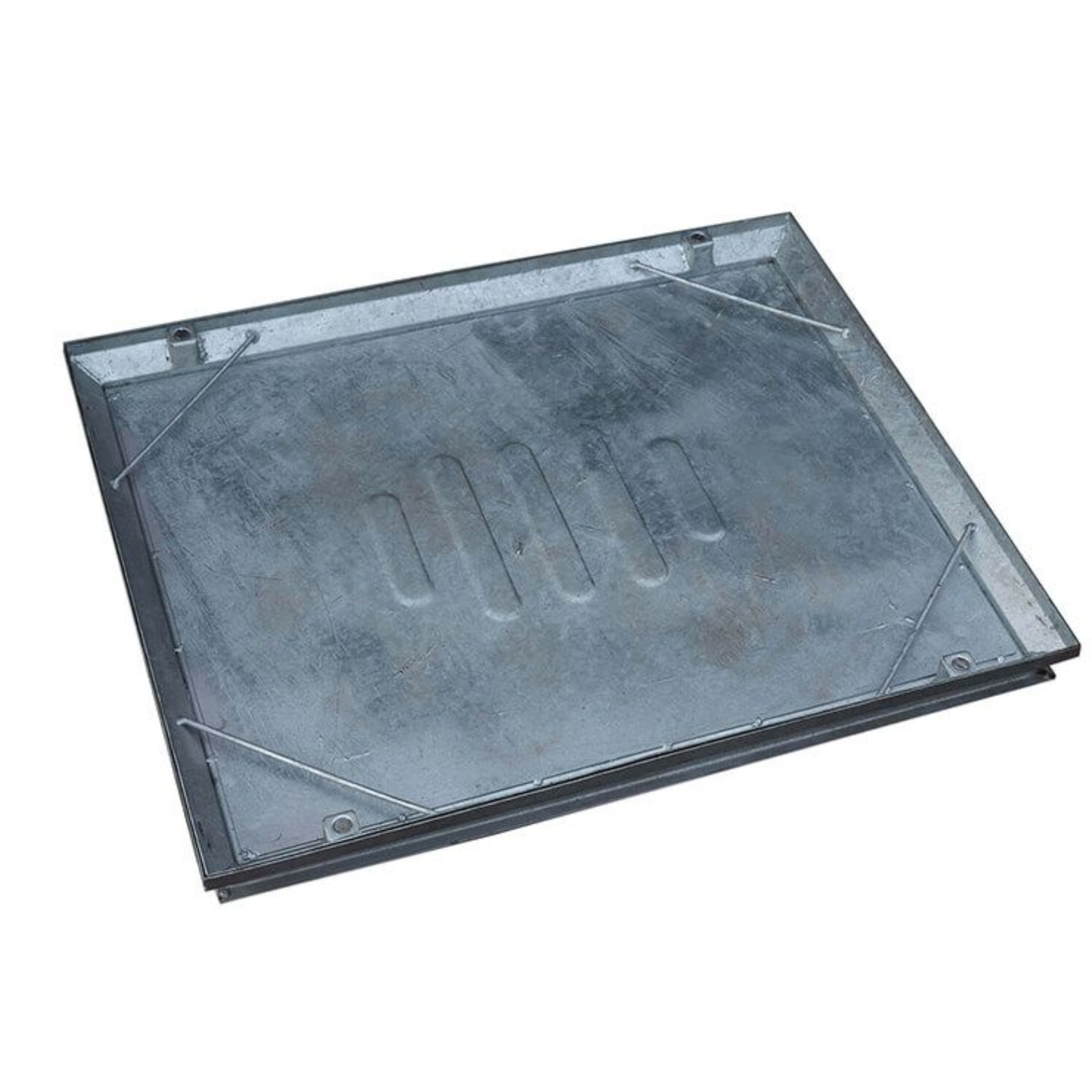

750 x 600mm Sealed & Locking Recessed Manhole Cover

The 750 x 600mm sealed and locking recessed manhole cover is designed for installations where a larger access opening is required while maintaining sealing performance. Manufactured from galvanised steel, both the tray and frame provide a rigid structure suited to internal floor construction.

This cover is typically used in internal environments such as plant rooms, basements and service areas, where drainage access is needed but odour control is also important. The factory fitted sealing gasket works with the screw locking system to compress the lid onto the frame, helping reduce odour escape.

The recessed tray allows for concrete or screed infill so the finished surface remains flush with the surrounding floor. It can also be used externally in pedestrian areas such as patios, but it is not suitable for trafficked locations due to its 5 tonne load rating.

A common issue with larger covers is movement within the frame over time. The steel construction and tapered frame design help improve stability and bedding, reducing long term movement.

• 750 x 600mm clear opening suits larger rectangular inspection chambers
• Fully galvanised steel construction improves rigidity and durability
• Rubber sealing gasket helps prevent odours escaping in internal environments
• Four screw locking system secures the cover and improves sealing performance

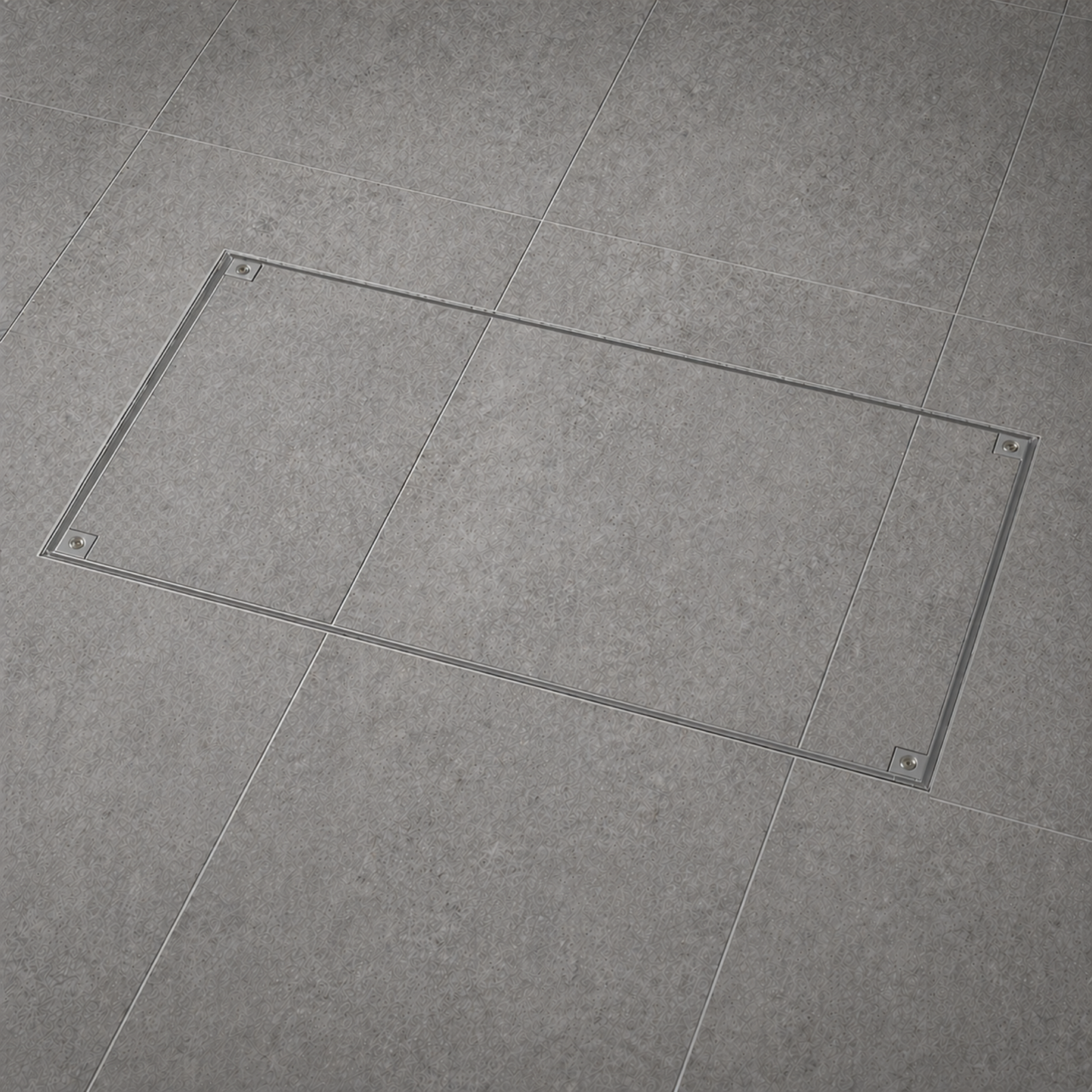

• Recessed tray accepts concrete or screed for a flush finish
• 5 tonne load rating suitable for pedestrian areas and light external use
• Tapered frame design improves bedding and installation stability
• Integrated lifting key holes allow safe removal using lifting keys

This cover is manufactured from galvanised mild steel for both the tray and frame. This provides increased rigidity compared to polypropylene framed alternatives, while the galvanised finish offers protection against general corrosion in typical internal and external environments.

Product type: Sealed and locking recessed manhole cover
Suitable location: Internal and external pedestrian areas
Clear opening: 750mm x 600mm
Overall frame size: 856mm x 706mm
Tray depth (recess depth): 43.5mm
Frame depth: 60mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Rubber gasket seal
Locking: Four screw locking
Load rating: 5 tonne GPW
Lifting method: Lifting keys required
Fixings supplied: Not specified
Weight: 25kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3
Options: Compatible with CD 776 lifting keys
