750 x 750mm Grass & Gravel Recessed Manhole Cover 10 Tonne

This recessed manhole cover is designed to provide concealed access within grass, landscaped and gravel surfaces. The square tray allows infill to sit flush with the surrounding ground, maintaining a consistent finish while ensuring the inspection chamber remains accessible.

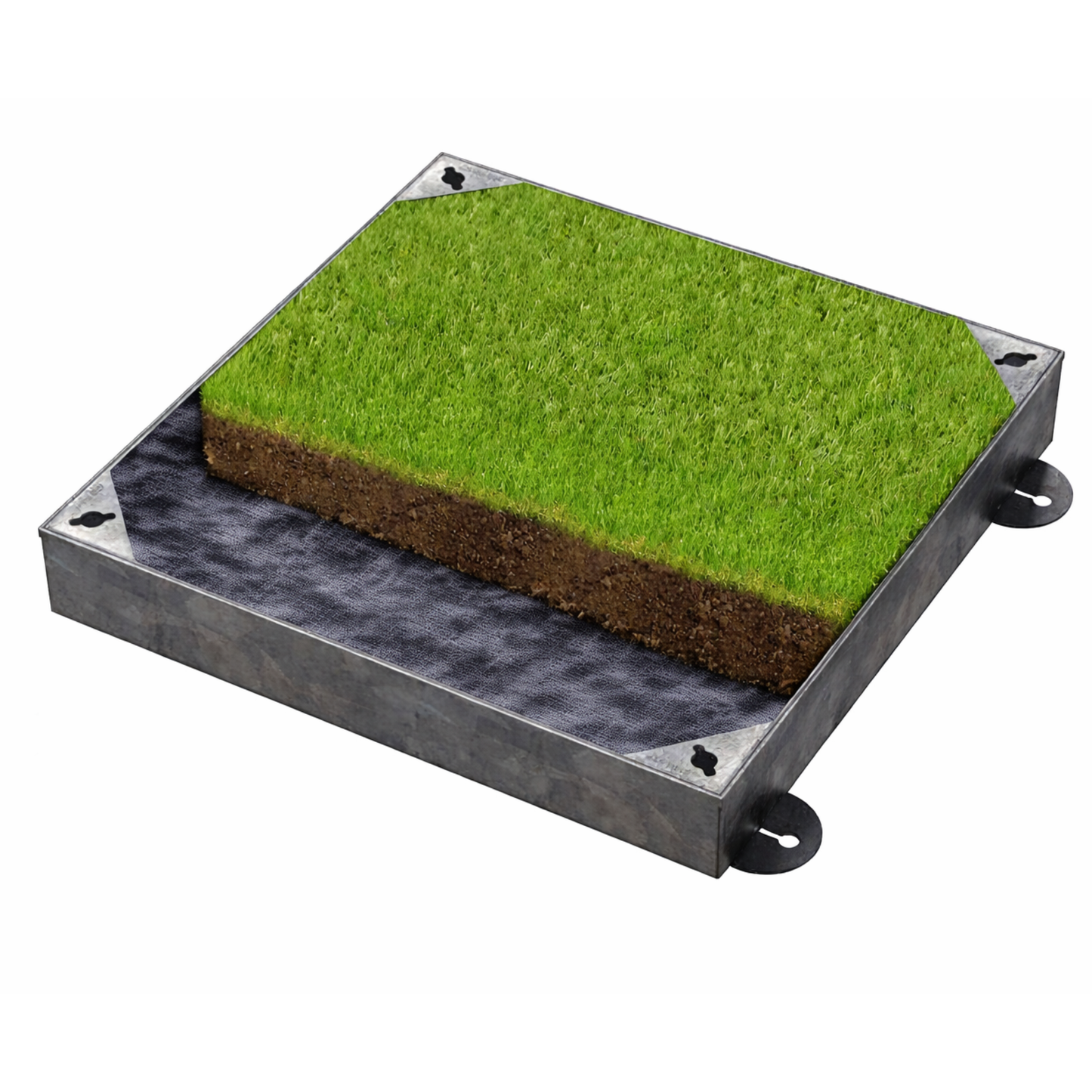

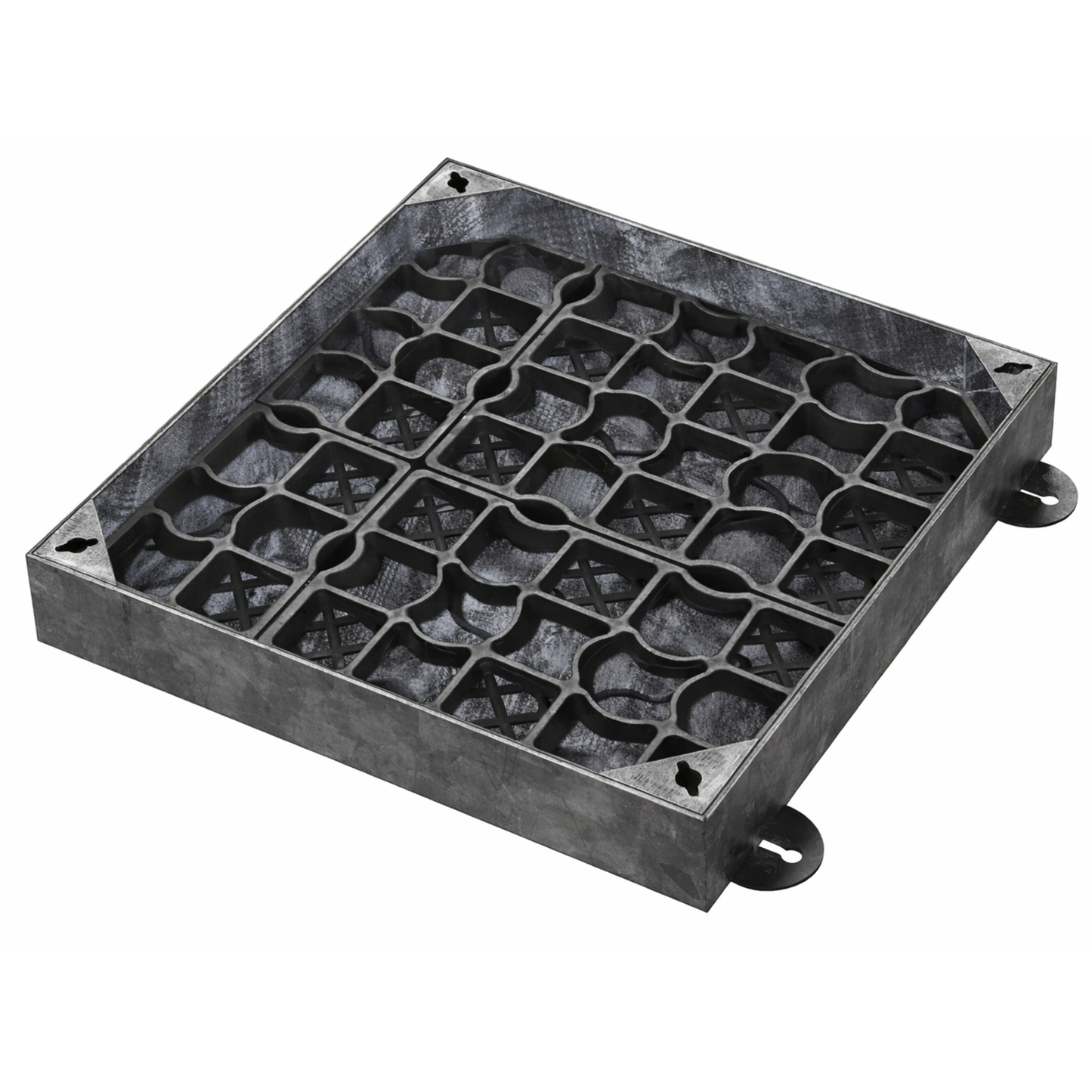

Two infill options are available. The grass top version is intended for soil and turf, using drainage holes and membrane layers to support water movement and grass growth. The gravel top version incorporates an EcoGrid reinforcement layer, which stabilises loose aggregate and reduces movement under foot or light vehicle loading.

The 100mm tray depth is suited to deeper landscaping build-ups. It allows for a greater volume of soil or aggregate compared to shallower trays, improving turf establishment and increasing stability in gravel installations, particularly in areas with regular use.

Manufactured from galvanised steel, the cover provides structural strength for external use. It is suitable for gardens, landscaped areas and domestic driveways with light vehicle traffic.

Selection should always be based on the clear opening of the chamber. The overall frame size is larger and should not be used for sizing.

• 750mm x 750mm clear opening suits larger square inspection chambers
• 100mm tray depth supports deeper turf or gravel installations
• Choice of grass top or gravel top configurations
• Gravel top option stabilises loose aggregate under use
• Galvanised steel construction provides structural strength
• Drainage holes and membrane layers support water flow and turf growth
• Suitable for landscaping and domestic driveway applications
• Compatible with standard lifting keys for access

Manufactured from galvanised steel for strength and durability in external ground conditions. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an EcoGrid reinforcement layer to stabilise loose infill materials.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 750mm x 750mm
Overall frame size: 856mm x 856mm
Tray depth (recess depth): 100mm
Frame depth: 106mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Varies by option
Standards: Not stated
Options:
EG7575/100-GT, Grass Top, 750mm x 750mm clear opening, 856mm x 856mm overall frame size
EG7575/100-GT-EG, Gravel Top, 750mm x 750mm clear opening, 856mm x 856mm overall frame size
