Choosing a manhole cover should be straightforward. In reality, most issues arise because one or two key details are missed at the start. Covers are then ordered incorrectly, returned or fail in service because they were not suited to the location.
This guide breaks the process down into seven practical considerations used daily when specifying manhole covers for domestic, commercial and landscaped projects.
1. Clear Opening
The clear opening is the most important dimension.
It refers to the internal opening of the frame, which corresponds to the chamber opening in the ground. All manhole covers are specified by clear opening size, not by their outside dimensions.
If the clear opening does not match the chamber, the cover will not seat correctly, regardless of how close the overall size appears.
Always measure the chamber opening first.
2. Load Rating
The cover must be suitable for the load it will see in service.
This is determined by the type of traffic passing over it, not by what it looks like.
Typical considerations include:
-
Pedestrian only areas
-
Domestic driveways
-
Areas accessed by vans or service vehicles
Under specifying load rating shortens service life and increases safety risk. Over specifying often adds unnecessary cost and weight.
3. Type of Manhole Cover
Manhole covers fall into two main categories.
Solid top covers remain visible once installed. They are commonly used where appearance is not critical or where finishes cannot be recessed.

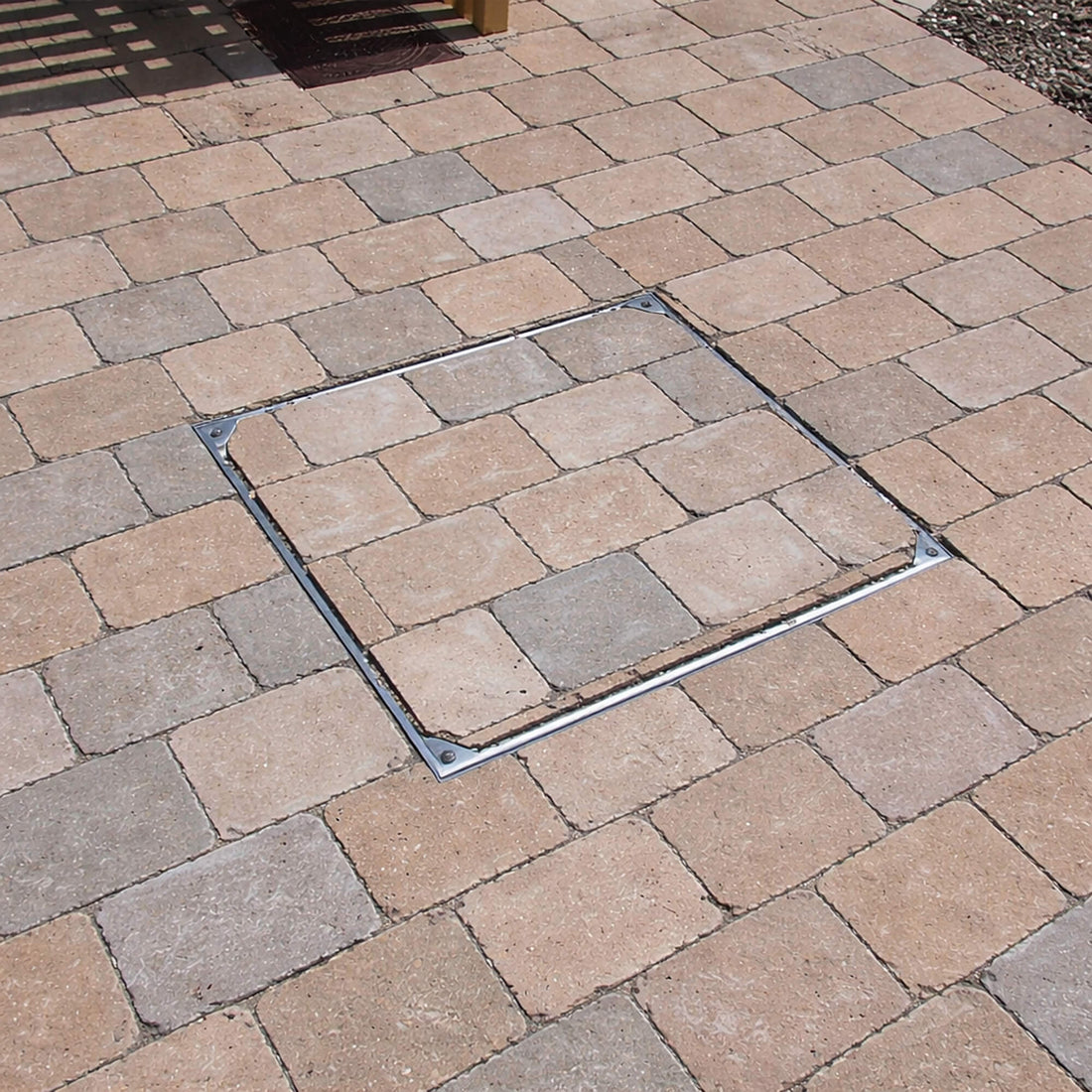

Recessed covers include a tray designed to accept an infill such as paving, slabs or tiles. When specified correctly, only the frame edge and lifting points remain visible.
The choice depends on finish requirements, not personal preference.
4. Tray Depth Requirement
For recessed covers, tray depth must suit the finished surface build up.
This includes the thickness of tiles, slabs or blocks plus bedding or screed. Insufficient depth results in weak infill. Excessive depth adds unnecessary weight.
Tray depth directly affects performance and should always be checked before ordering.
5. Material Selection
Material choice affects durability, corrosion resistance and suitability for the environment.
Common options include:
-
Galvanised steel for general external use
-
Stainless steel for aggressive or chlorinated environments
-
Aluminium where low weight and appearance matter
-
Ductile or cast iron for high load, traditional applications
-
Polypropylene for lightweight, non corrosive requirements
Material should always be selected based on location and exposure, not cost alone.
6. Functional Requirements
Some installations require more than basic access.
Internal locations may need sealing to prevent odours. External landscaped areas may need drainage rather than sealing.
For lawns and gardens, GrassTop recessed covers allow water to drain through the tray while supporting grass growth. For gravel areas, EcoGrid recessed covers prevent infill movement while maintaining permeability.
Function should always drive product choice.
7. Overall Size and Bespoke Options
While clear opening defines fit, overall frame size affects how the cover interfaces with surrounding finishes.
Standard sizes cover most applications, but older chambers, unusual openings or large access points often require bespoke covers.
Made to measure fabrication avoids compromise and prevents site modifications later.
Summary
Most manhole cover problems come from missed details, not poor products.
Check the clear opening. Specify the correct load rating. Match the cover type, depth, material and function to the location. Use bespoke options where standard sizes do not fit.
Getting these seven points right avoids delays, returns and long term performance issues.
