Manhole covers no longer need to interrupt finished paving. When specified correctly, a recessed cover can sit within patterned surfaces without standing out or compromising access.

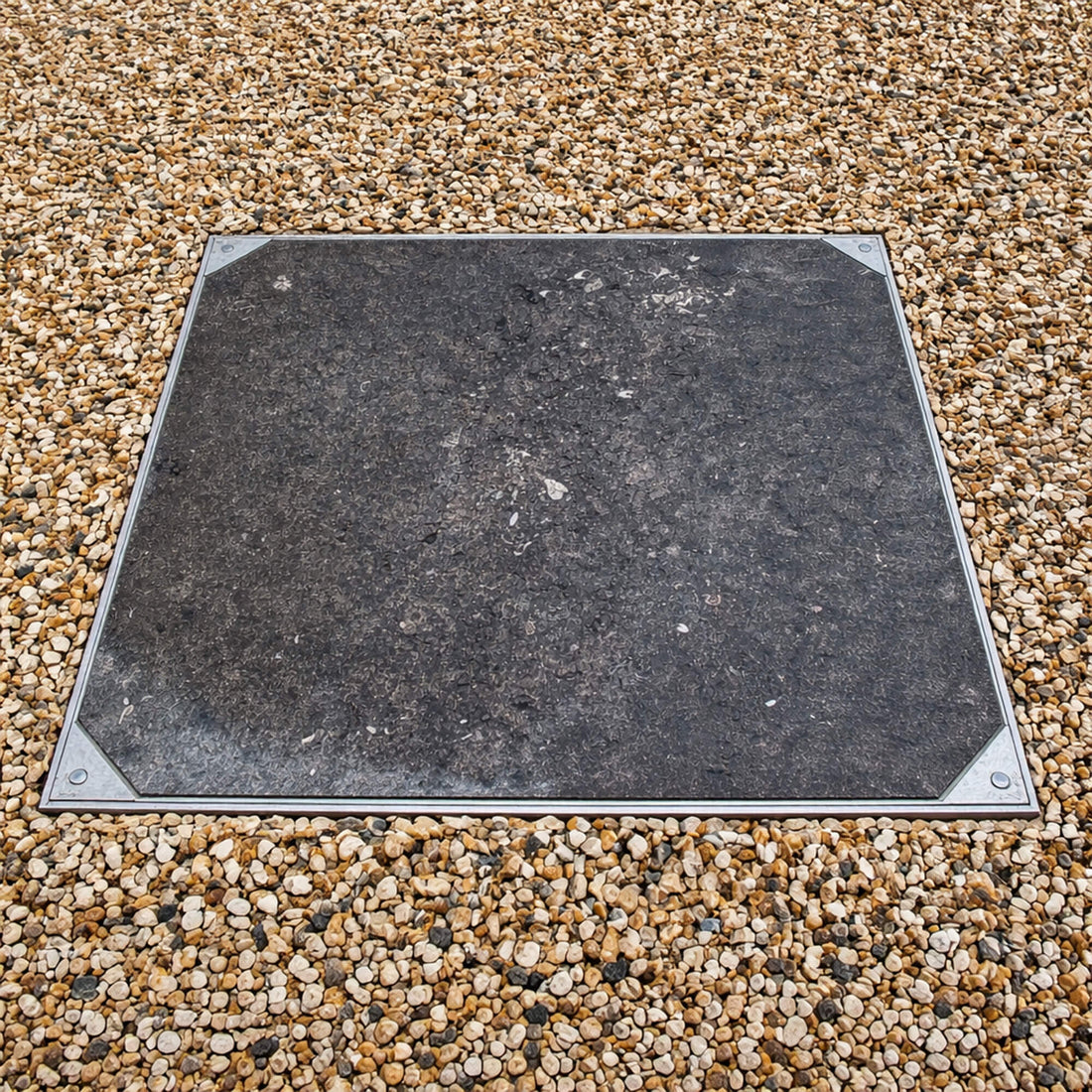

This project shows a sealed and locking recessed manhole cover installed within a flag and pebble pathway, using the same paving materials to maintain a consistent surface finish.
Project Overview
Croft Civil Engineering installed a galvanised steel sealed and locking recessed manhole cover within a pedestrian pathway formed from paving flags and decorative pebbles.
The aim was to retain access to the chamber while keeping the cover visually unobtrusive within a mixed surface layout.
By matching the infill to the surrounding flags, the cover blends into the pathway rather than drawing attention to itself.
Why a Sealed and Locking Cover Was Used
This installation sits in a pedestrian area, so loading requirements were modest but sealing was important.
The chosen cover offers:
- A 5 tonne gross plated load rating suitable for foot traffic
- Double neoprene gasket seals to limit odour escape
- Four stainless steel locking screws to secure the lid
- A recessed tray designed to accept paving infill
Galvanised steel construction provides durability for external use in typical garden and pathway environments.
Installation Considerations for Patterned Surfaces
Matching a recessed cover into patterned paving requires careful setting out.
Flag sizes, joint lines and tray depth all need to be considered before installation. When done properly, the finished surface reads as continuous, with only the frame edge and lifting points visible.
This approach works particularly well in paths and patios where repeated patterns would otherwise highlight the cover location.
Lifting and Access
Sealed and locking recessed covers require lifting keys to remove the lid safely.
For this cover type, compatible lifting keys should always be ordered at the same time to avoid delays during inspection or maintenance.
Alternative Decorative Recessed Cover Options
Not every surface or environment suits a sealed and locking recessed cover. Where infill material, loading or exposure changes, a different recessed cover type may be more appropriate.
Each option below links to its relevant product category.
Aluminium Recessed Manhole Covers
 |
Aluminium recessed covers are specified where a slim frame profile and clean edge detail are required. They are commonly used in high-end internal spaces and external paved areas where appearance matters. Double sealed versions are typically used externally. Triple sealed versions are specified internally where odour and moisture control are required. |
Block Paving Recessed Manhole Covers
 |
Designed for domestic driveways and lightly trafficked areas, block paving recessed covers allow full infill depth to suit standard block construction. Deeper tray options are available to accommodate block and bedding thickness without compromising load performance. |
Stainless Steel Recessed Manhole Covers
 |
Stainless steel recessed covers are used where corrosion resistance is critical. Typical applications include foul water access, plant rooms, commercial kitchens and swimming pool surrounds. Grade selection matters. Stainless steel is specified where galvanised steel would deteriorate over time. |
Water and Odour Tight Recessed Manhole Covers
 |
These covers are used in internal locations where odour containment and water resistance are required. They are commonly specified for basements, bathrooms, commercial kitchens and utility rooms. Stainless steel variants should be used where chlorinated water or aggressive cleaning chemicals are present.
|
GrassTop and GravelTop Recessed Manhole Covers
 |
GrassTop and GravelTop covers are designed for landscaped and permeable surfaces. Pre-drilled trays and factory-fitted membranes allow grass to establish or gravel to remain stable. GravelTop versions incorporate EcoGrid support to prevent migration under foot traffic.
|
Summary
This project demonstrates how a sealed and locking recessed manhole cover can be integrated successfully into a flag and pebble pathway.
By matching the infill material and specifying the correct sealing and load rating, the cover remains discreet while maintaining safe, reliable access.
